| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Double layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roofing Tile Roll Forming Machine | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Machine Warranty: | 12 Months | Machine Color: | Green Or Client's Request |
| Control Box Language: | English | Control System: | PLC(detla) System |
| Export Port: | Tianjin Port | Need Container: | 1*40 Feet |
| Highlight: | Double Roll Forming Machine 8m/Min,Double Roll Forming Machine 12m/Min |
||
Low Noise Double Deck Roll Forming Machine 8-12m/Min For Standard Solution

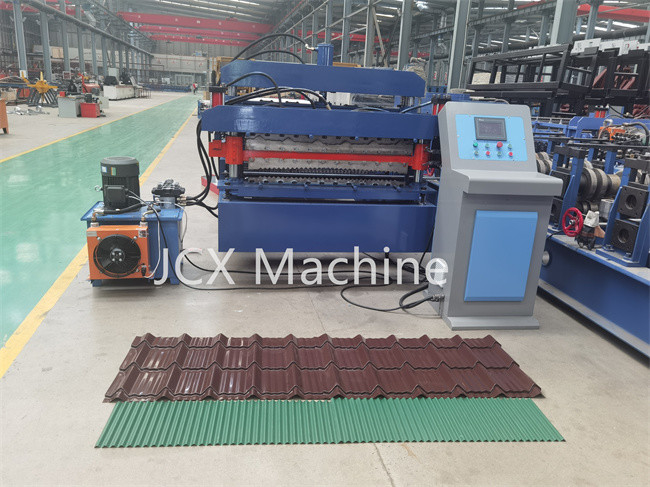

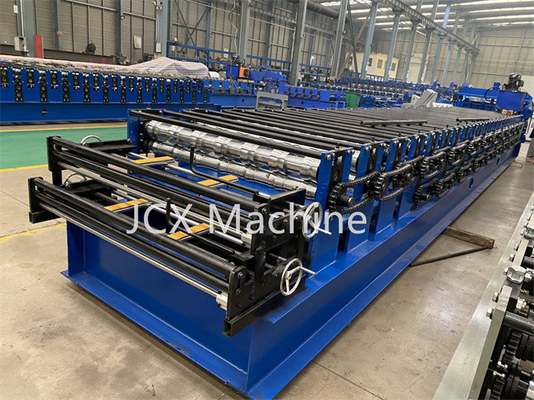

1. Double layer roll forming machine
2. Technical details of double layer roll forming machine
| ROOF PANEL ROLL FORMING MACHINE | ||
| 1 | Suitable to process | Color steel |
| 2 | Width of the raw material | 1200 |
| 3 | Output width | 1000 |
| 4 | Rollers | 16 rows |
| 5 | Power | 4kw+4kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity |
12-15m/min or 25-35m/min by hydraulic motor |
| 8 | Diameter of the roller | 72mm |
| 9 | Weight | About 4 T |
| 10 | Voltage | 380V 50Hz 3phase |
| 11 | Received table | 4 meters |
| 12 | Raw material of the cutter | Cr12 |
| 13 | Raw material of the roller | Bearing steel |
3. Main components of double layer roll forming machine
|
Double layer roll forming machine
|
||
|
Name
|
Quantity
|
Units
|
|
5T manual uncoiler (Hydraulic uncoiler)
|
1
|
Set
|
|
Adjustable feeding platform
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
Plc cut to length
|
1
|
Set
|
|
Hydraulic system
|
1
|
Set
|
|
Delta Electronic Control System
|
1
|
Set
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Features of Double Layer Roof Roll Forming Machine
1). Double layer roll forming machines can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2). Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, and maintenance-free.
3). We can make and design all kinds of forming machines according to the customer's request.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
7. FAQ
(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Celina Li
Tel: +8615128751166
