| Product Name: | Double Layer Roofing Tile Roll Forming Machine | After-sales Service Provided: | 24 Hours Video Technical Support |
|---|---|---|---|
| Machine Warranty: | 12 Months And Life Long Tracking Service | Machine Color: | Client's Request |
| Control Box Language: | English Or Add Customer Request Language | Control System: | PLC(detla) System Or As Customer Request |
| Export Port: | Tianjin Port Or Other Chinese Port | Need Container: | 1*40 Feet Container |
| High Light: | Roofing Tile Double Layer Forming Machine,Double Layer Forming Machine 20m/Min |
||
Blue Color Double Layer Roll Forming Machine 15-20m/min 7.5m x 1.45m x 1.5m
1. Double layer roll forming machine
When you needs to produce two different metal sheets, cladding, trapezoidal, corrugated sheets or metal tiles, a double layer roll forming machine is suitable for you.
Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet; or one trapezoidal roofing sheet and one corrugated roofing sheet; or one trapezoidal sheet and one metal roof tile; or one corrugated sheet and one metal glazed roof tile etc. To sum up, any two of the metal roof panels can be produced by this same double deck roll forming machine.
2. Features of Double Layer Roof Roll Forming Machine
1). Double layer roll forming machines can use a galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2). Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable, and maintenance-free.
3). We can make and design all kinds of forming machines according to the customer's request.
3. Technical details of double layer roll forming machine
| 1 | Coil Width | 1220mm max |
| 2 | Rolling Speed | 10-16m/min |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Control System | PLC (Panasonic) |
| 5 | Uncoiler | Manual uncoiler |
| 6 | Pre-cutting | Pre-cutting install after feeding for customer change coil only |
| 7 | Roller Stations |
Up layer: 24stations Down layer: 22 stations |
| 8 | Roller Material | 45# steel with chrome plated surface |
| 9 | Shaft Material | Dia 76mm, material:45#, quenching and tempering, coated with hard chrome |
| 10 | Post cutting | The machine adopts hydraulic cutting system |
| 11 | Material Of Cutting | Cr12 steel, 58-62 HRC |
| 12 | Maim Motor Power | 11 KW |
| 13 | Hydraulic Station Power | 7.5 KW |
| 14 | Hydraulic Pressure | 12-16Mpa adjustable |
| 15 | Structure Of The Stations | Guide pillar |
| 16 | Tolerance | 3m+-1.5mm |
| 17 | Voltage | 380V, 50HZ,3 phase |
| 18 | Drive Method | By gear chain |
4. Main components of double layer roll forming machine
| No. | Item | Quantity |
| 1 | uncoiler | 1 Set |
| 2 | Guiding Equipment | 1 Set |
| 3 | Roll Forming Equipment | 1 Set |
| 4 | Post Cut Equipment | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | PLC Control | 1 Set |
| 7 | Supporter Table | 2 Sets |
5. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

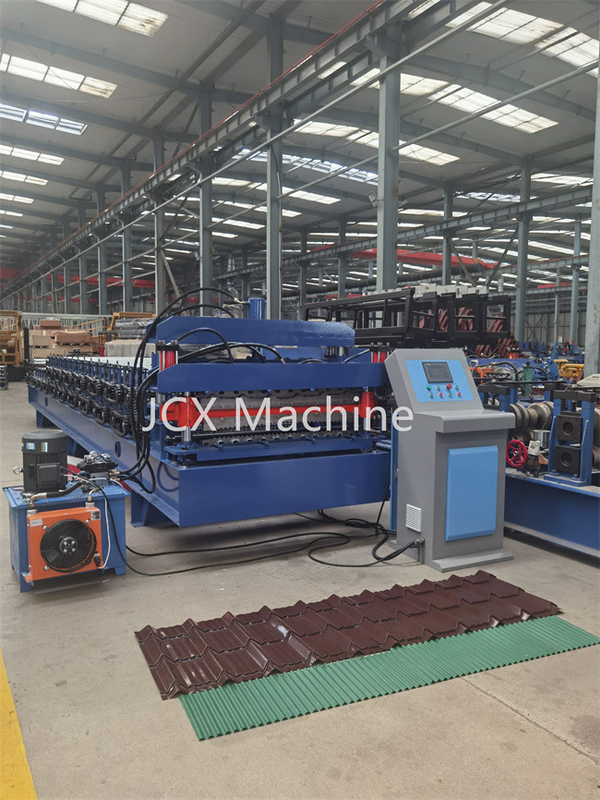

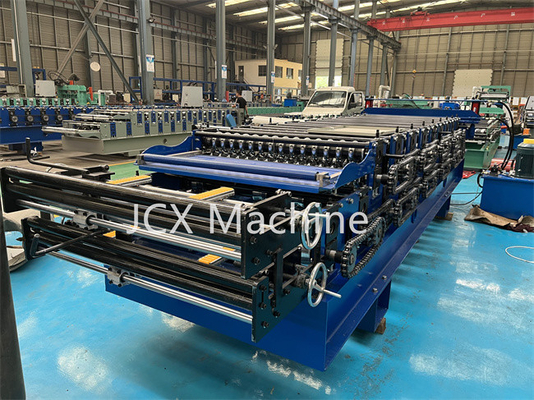

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
