| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89/140 TWO IN ONE LGS STEEL FRAMING MACHINE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 42,000-45,000USD/set |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets per year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | ISO CE |
|---|---|---|---|
| Roller: | DC53 | Shaft: | 50mm, 40Cr |
| PLC Brand: | Mitsubishi | After Warranty Service: | Video Technical Support |
| Color: | BLUE | Use: | Modular Building |
| Encoder: | Omron | ||
| Highlight: | Interchangeable Light Steel Frame Roll Forming Machine,ISO Light Steel Frame Roll Forming Machine |
||
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| No. | Item | Description |
| 1 | Size of Profile | 140*41mm |
| 2 | Punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| 3 | Suitable Material | G300-G550Galvanzied coils or Aluzinc |
| 4 | Steel coil Thickness | 0.75-1.2mm( CAN ENLARGE TO 2mm) |
| 5 | Steel coil width | 230mm |
| 6 | Standard Producing speed | 300-700m/h |
| 7 | Max producing speed | 1500m/h |
| 8 | Main motor | 7.5kw INVT SERVO MOTOR |
| 9 | Hydraulic station | Vane pump.more stable, and low pressure with high strength. |
| 10 | Hydraulic pump power | 5.5kw with cooling fan |
| 11 | Hydraulic tank capacity | 120L. ensure over 50% |
| 12 | Voltage | 380V 50Hz 3phases or customized |
| 13 | Machine weight | about 3000kgs |
| 14 | Machine size | 4.5m*0.8*1.6m |
| 15 | Lubrication system | Lubrication system |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |

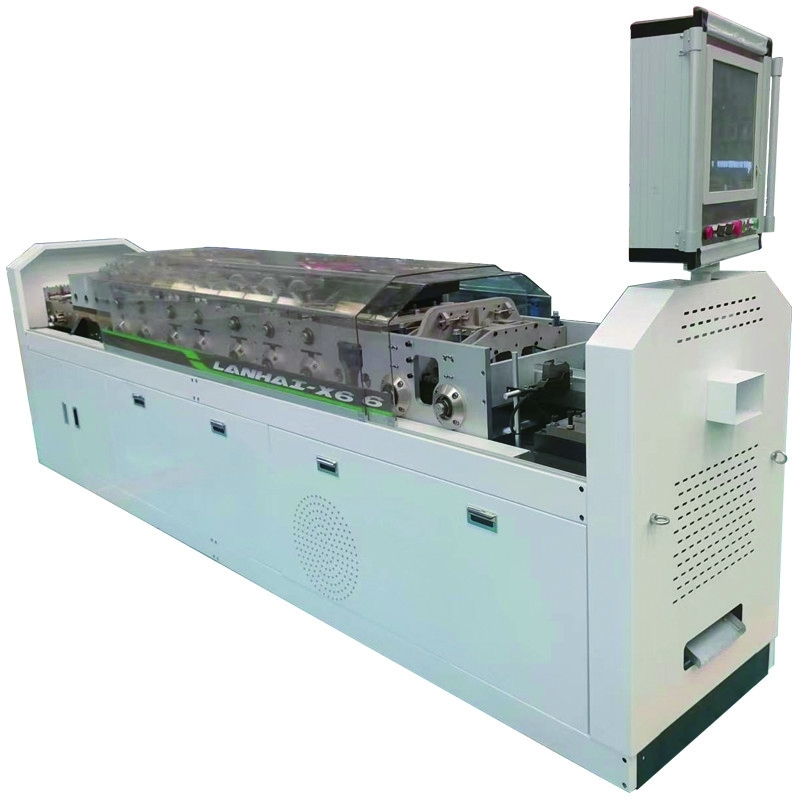

C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
| Brand of PLC |
Mitsubishi | JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:

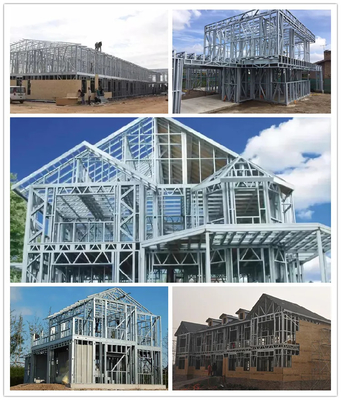

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
Contact Person: Eileen Sun
Tel: +86 17331704660
