4KW Shutter Door Roll Forming Machine Mould Cutting PLC Control

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Shutter Door Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Shutter Door Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	4KW Shutter Door Roll Forming Machine , Shutter Door Roll Forming Machine Mould cutting

Hot sales Rolling shutter roll forming machine/shutter door tiles forming machinery

Name: 4KW Shutter Door Roll Forming Machine Mould Cutting PLC Control
Brand: JCX
SKU: Shutter Door Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.5 (113 reviews)

1. Description of shutter door roll forming machine:

Shutter door roll forming machine popular sell in many countries. We ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Product thickness common between 0.8-1.2mm, material use PPGI or GI.Machine work speed reach 10-20 m/min.

2. Technical details of shutter door roll forming machine:

No	Item	Parameter
1	Forming Speed	About 10-15m/min without punching
2	Forming station	12 groups
3	Main Forming Power	4 KW
4	Pump Station Power	3 KW
5	Cutting Type	Mould cutting
6	Total Weight	About 3,500 KGS
7	Machine Type	Hard column structure
8	Voltage	380v,50hz,3p or as required
9	Diameter of shaft	50 mm solid, 45# steel with grinding process
10	Rollers	GCr15 with heat treatment and hard chrome coating 0.04-0.05
11	Cutting Blade	Cr12Mov with hard treatment, HRC52-68
12	Main frame system	Square box frame
13	Control System	Delta PLC
14	Measuring accuracy	Precision 3m +/-2mm,with frequencyer
15	Electrical motor	SHANGHAI LICHAO (famous brand)
16	Transmission	By gear drive
17	Counter	Omron from Japan
18	Under frame	Square box, 80mm square pipe welded, 10mm steel plate to make square box.
19	Straightening system	Straightening head
20	Language	Chinese-English operation version
21	Chain	Single chain 1’
22	Installation Size	5.9M * 1.5 M *1.2M

3. Main components of shutter door roll forming machine

No.	Name	Qty
1	De-coiler	1 Set
2	Roll Forming Machine	1 Set
3	Hydraulic Cutting Devic	1 Set
4	PLC Control Box	1 Set
5	Output table	1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

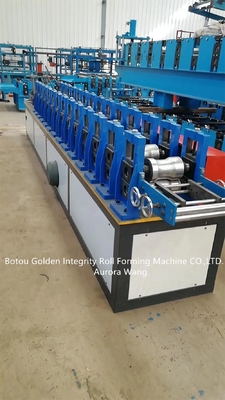

4KW Shutter Door Roll Forming Machine Mould Cutting PLC Control 0

5. Advantages

♥ As a manufacturer we are specialized in all kinds of roll forming machine.

♥ Good experience of 20 years to make roll forming machine.

♥ Good experience for export more then 40 countries.

♥ Provide best price,good quality and fast delivery.

6. Application

This machine is widely used in the production of the ridge caps

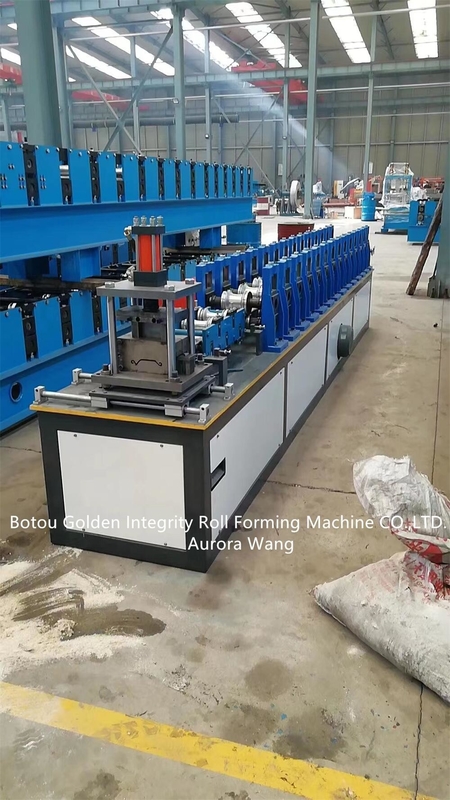

4KW Shutter Door Roll Forming Machine Mould Cutting PLC Control 1

7. Product photo

4KW Shutter Door Roll Forming Machine Mould Cutting PLC Control 2
