Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine

Name: Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.8 (174 reviews)

1. Double layer roll forming machine

This production line can automatic continuous rolling forming ,track scale cut off and etc for the plate, ensure the continuity of production and often can up to max. Steel strip coil are on manual feeding shelf, enter into roll forming machine for forming, and then cut the knife moulds to cut the product for length.

2. Technical details of double layer roll forming machine

Model	800/1024
Rod	18
Production and processing speed	10 m/min
Processing thickness	color steel 0.8mm
Axle diameter of roll	Ø70
Frame	350H steel welding
Medium plate	16mm
Transmission mode	1 inch sprocket chain drive
Shaft material	45# quenching and finishing machining
Wheel material	45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power	4KW pure copper motor
Oil pump motor	4KW
Control system	touch screen setting
Shear	hydraulic mold shear
Cutter plate	Cr12 blade

3. Main components of double layer roll forming machine

No.	Component	Quantity
1	Decoiler	1 set
2	Guiding	1 set
3	Roll forming	1 set
4	Hydraulic cutting	1 set
5	Out table	2 sets
6	Hydraulic station	1 set
7	PLC controller	1 set
8	Spare part&tools	1 box

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

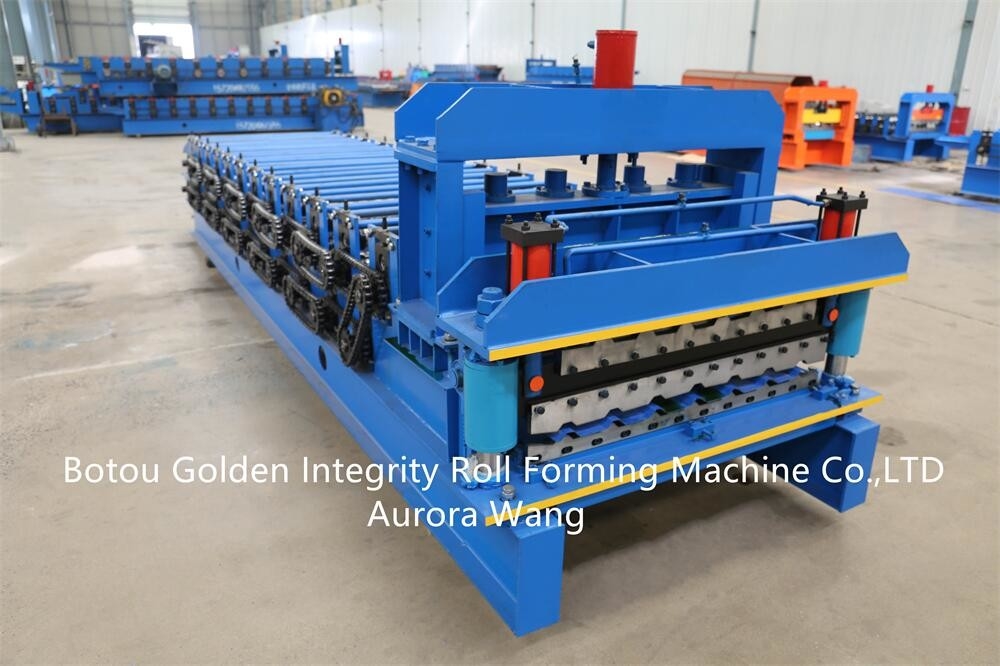

Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine 0

5. Advantages

The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

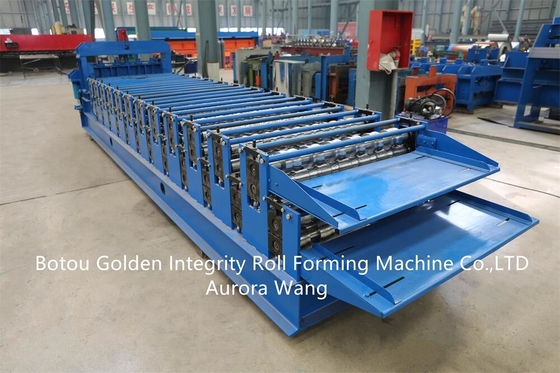

Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine 1

7. Product photo

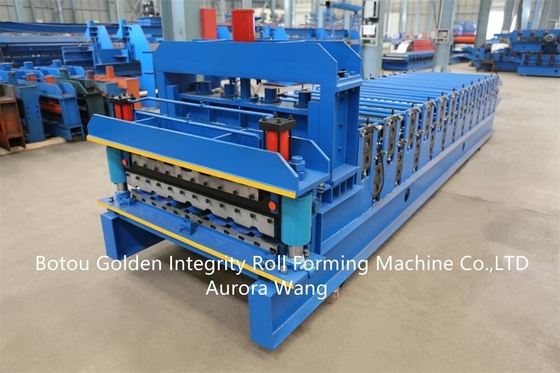

Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine 2

Combined double layer building material machinery Trapezoidal roof tile building material roll forming machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
