Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine

Name: Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.9 (156 reviews)

1. Double layer roll forming machine

The double-layer roof tile making machine is controlled by a computer controller program, which can be set in advance to cut the meter, length, quantity and punching position. The program will perform cut-to-length cutting by itself, saving manpower! With multi-languages, it is convenient for users in various countries, simple and easy to operate, and can input multiple sets of different work data, saving time, labor and labor! , High throughput!

2. Technical details of double layer roll forming machine

No.	Item	Parameter
1	Coil material	0.3-1.0 mm steel(according to customer's request)
2	Rollers material	Gcr15 bearing steel, quenching (HRC55-58)
3	Shaft material	45#forge steel, thermal fining
4	Cutting blade	Cr12Mov, heat treatment(HRC58-62°)
5	Driving method	by chain
6	Working speed	10-15 m/min
7	Dimension	about 81.51.6 m (lengthwidthheight)
8	Weight/ Container	about 8T/ one 40'GP

3. Main components of double layer roll forming machine

No.	Component	Quantity
1	Decoiler	1 set
2	Guiding	1 set
3	Roll forming	1 set
4	Hydraulic cutting	1 set
5	Out table	2 sets
6	Hydraulic station	1 set
7	PLC controller	1 set
8	Spare part&tools	1 box

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine 0

5. Advantages

The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine 1

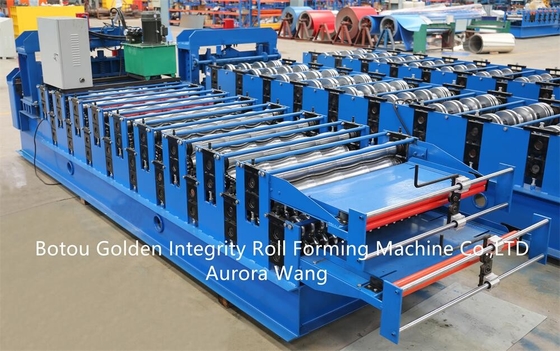

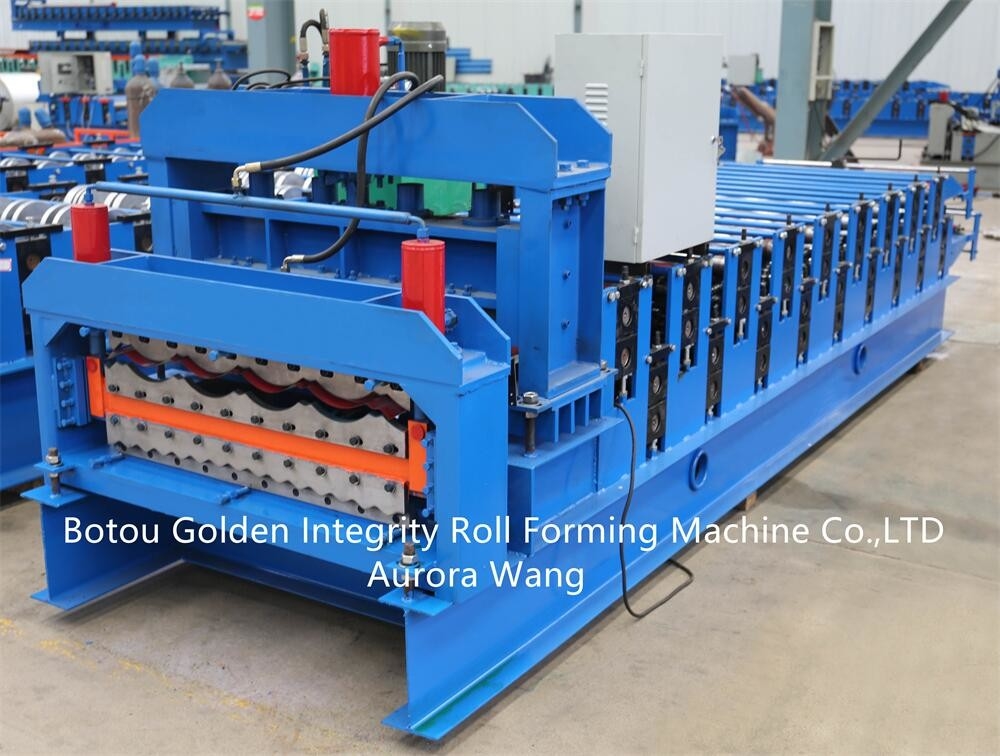

7. Product photo

Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine 2

Hot Sale Big Quality Precision Double Layer Cold Roll Forming Former Making Machine 3
