New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine

Name: New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.6 (165 reviews)

1. Double layer roll forming machine

Roofing Tile Double Layer Roll Forming Machine is a color-coated steel plate that is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.

2. Technical details of double layer roll forming machine

No	Name	Specifications
1.	Type of machine	Tile roll forming machine
2.	Structure	Wire electrode cutting structure
3.	Material	Galvanized -painted
4.	Width	1000
5.	Thickness	0.3-0.8mm
6.	Coil weight	5T
7.	Line speed	18-25m/min
8.	Roller material	45 # chrome plated
9.	Drive system	By gear box or By chain
10.	Cutter design	Flying cutter or hydraulic cutter
11.	Stacker	automatic stacker or simple stacker
12.	Main frame	350H beam

3. Main components of double layer roll forming machine

MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler or Manual	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Pre-cutting or motoraized cut
	Main Roll Forming Machine	1 set	About 18 steps base on the design
3.Cutting system	Hydraulic Cutting		Precutting and postcutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

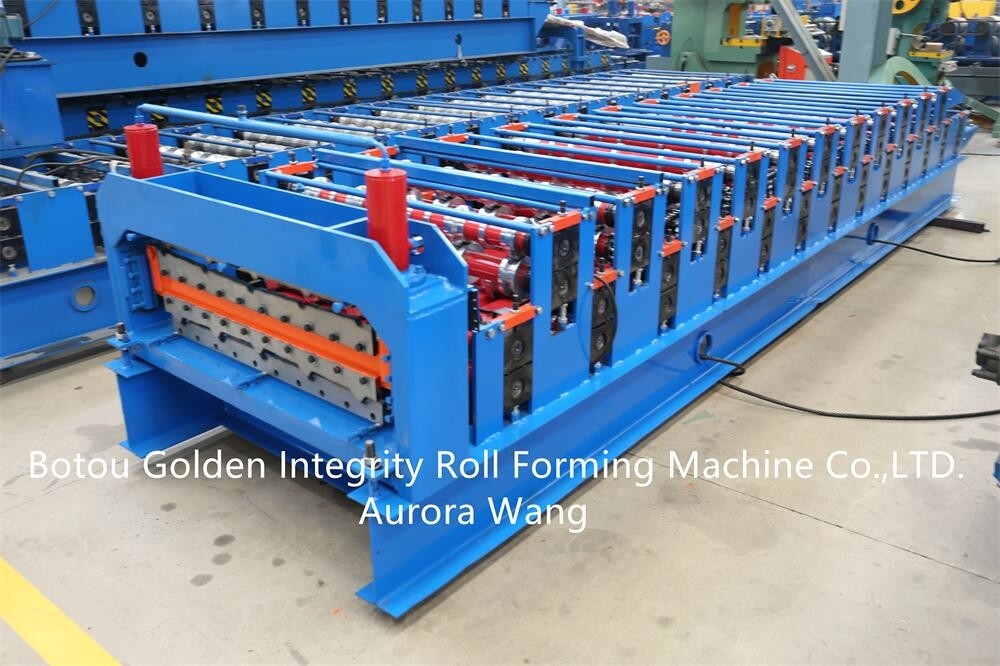

New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine 0

5. Advantages

The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

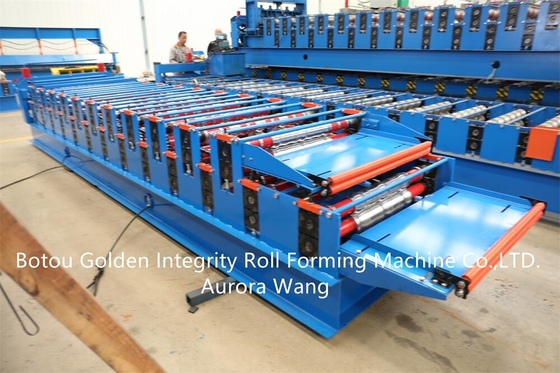

New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine 1

7. Product photo

New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine 2

New Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine Roof Tile Making Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
