Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine

Name: Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.8 (114 reviews)

1. Double layer roll forming machine

1.Double layers can make up by glazed tile and single sheet.Two layers can make up by single sheet and single sheet.
2.Pressing and cutting style -guide pillar type or welded steel plate style.

2. Technical details of double layer roll forming machine

Part Details	Item Name	Specification
Material	Raw material	PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	Depending on the customer's drawing
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6×1.5×1.3 m
	Machine weight	About 5.5 ton
	Machine color	As the customer's request
	Working speed	18-25 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	5.5 kW
	Pump power	7.5 kW
	Voltage	380v/50HZ,3P, or customize as customer's request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capacity	5 ton
	Price	Free as Gift
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as Gift

3. Main components of double layer roll forming machine

MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler or Manual	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Pre-cutting or motoraized cut
	Main Roll Forming Machine	1 set	About 18 steps base on the design
3.Cutting system	Hydraulic Cutting		Precutting and postcutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

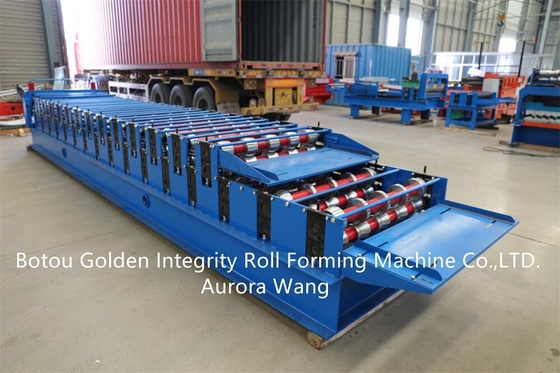

Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine 0

5. Advantages

The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

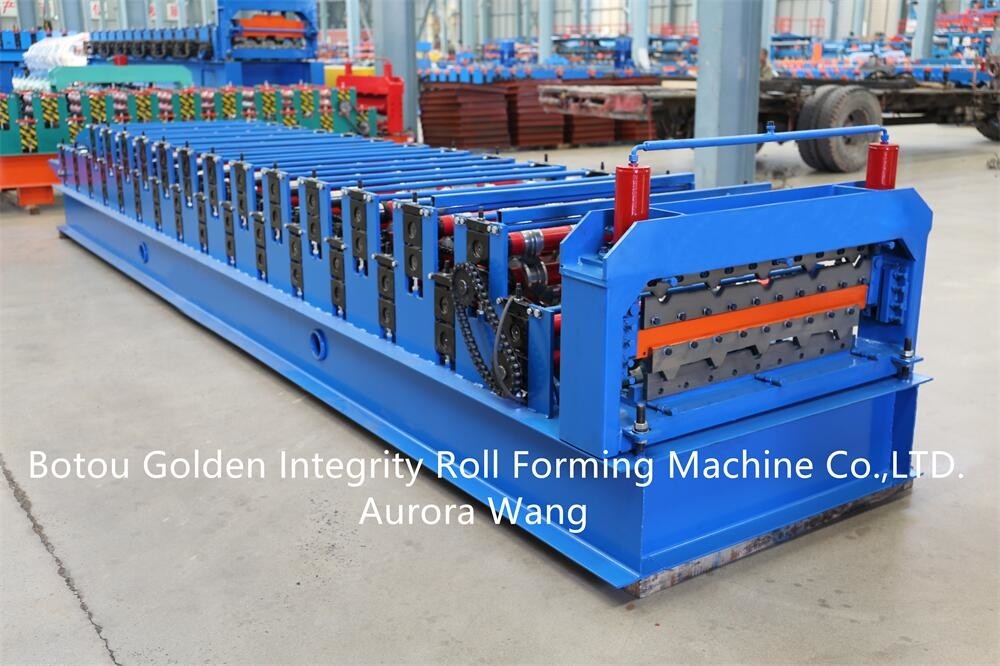

Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine 1

7. Product photo

Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine 2

Combined Double Layer Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine 3
