Good price double layer metal roofing sheet making machines for sale roll forming machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Good price double layer metal roofing sheet making machines for sale roll forming machine

Name: Good price double layer metal roofing sheet making machines for sale roll forming machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.7 (107 reviews)

1. Double layer roll forming machine

The products of color steel tile has light weight, high strength, bearing great, good vibration resistance characteristics, are widely used in high-rise steel structure building. Widely used in large and medium-sized enterprises and civil construction, such as workshop, locomotive shed, hangar, stadiums exhibition hall, theater, etc.

2. Technical details of double layer roll forming machine

Suitable material	PPGI/Aluminium sheet/galvanized sheet/various sheet plates
Thickness of coil sheet	0.3-0.8mm
Coil width	1250mm
Effective width	1000mm
Material of main frame	350H steel structure, strong and durable
Diameter of Soild shaft	70mm, high grade 45# steel
Roller	High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm
Thickness of middle plate	18mm, 45# steel plate
Drive type	By chain(1.0 inch, link bearing model 6210
Power of main motor	5.5 kw, Lichao, Shanghai, with reducer
Forming speed	About 18-25m/min
Hydraulic pump station	5.5 kw, 40# hydraulic oil
PLC	Mitsubishi, Japan
Material of razor blades	Cr 12, quenching 58-62℃
Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm.

3. Main components of double layer roll forming machine

MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler or Manual	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Pre-cutting or motoraized cut
	Main Roll Forming Machine	1 set	About 18 steps base on the design
3.Cutting system	Hydraulic Cutting		Precutting and postcutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

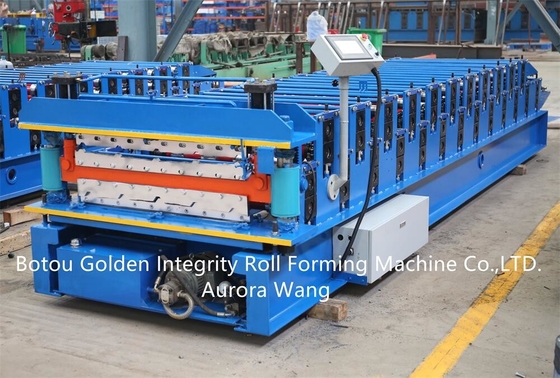

Good price double layer metal roofing sheet making machines for sale roll forming machine 0

5. Advantages

The advantage of ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

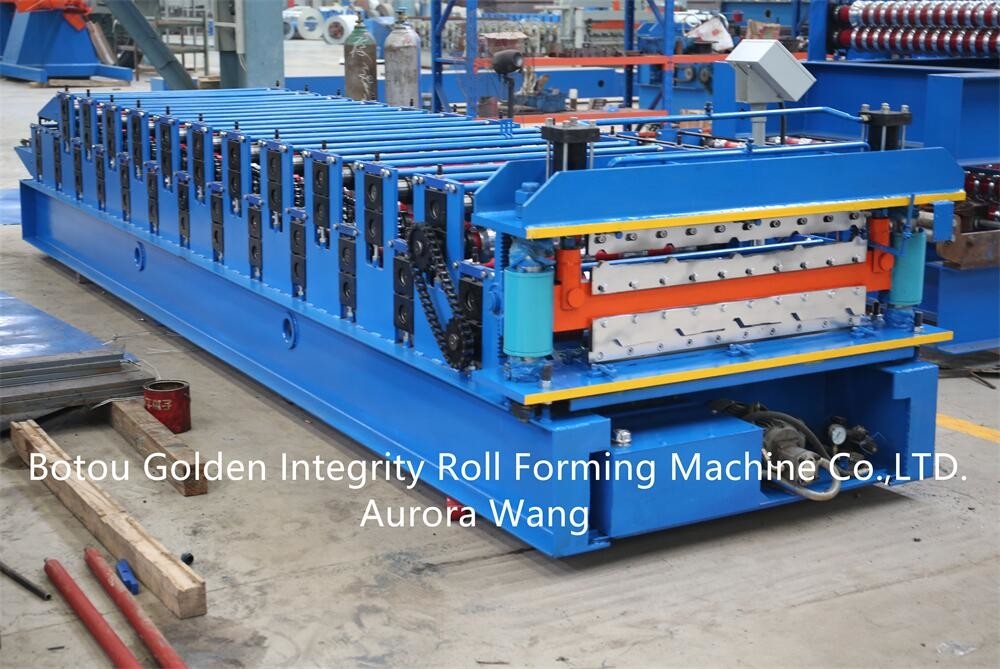

Good price double layer metal roofing sheet making machines for sale roll forming machine 1

7. Product photo

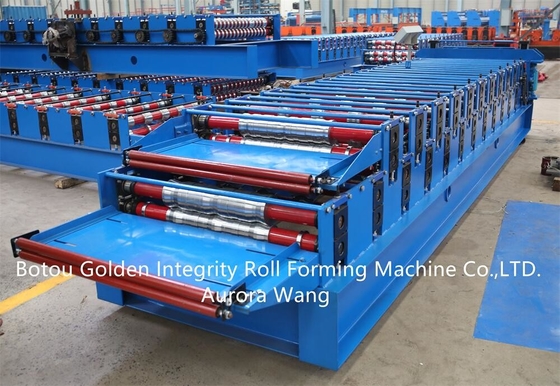

Good price double layer metal roofing sheet making machines for sale roll forming machine 2

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western (2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
