Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet

Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine

Name: Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 5 (123 reviews)

1. Double layer roll forming machine

Double Layer machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.

Base on stable and durable performance, Wadjay knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

2. Technical details of double layer roll forming machine

Thickness of material	0.3 mm ~ 0.8 mm
Forming speed	18-25 m/min
Hydraulic driving and cutting system.
Hard chrome coated rollers.

3. Main components of double layer roll forming machine

MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler or Manual	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Pre-cutting or motoraized cut
	Main Roll Forming Machine	1 set	About 18 steps base on the design
3.Cutting system	Hydraulic Cutting		Precutting and postcutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

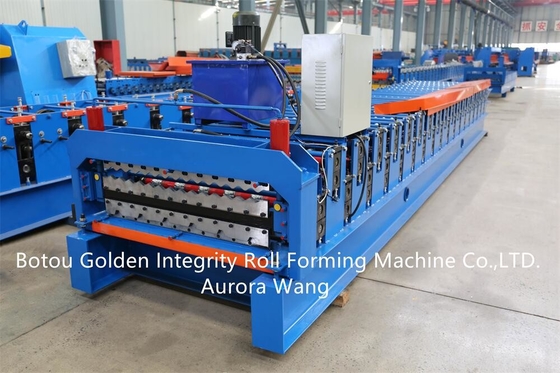

Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine 0

5. Advantages

Full automatic double layer metal roofing sheet trapezoid and trapezoid roll forming machine is for making the roofing sheet.As it have two layers,can produce two types roofing sheet on one machine.These pictures' machine is for make the corrugated type and trapezoid type roofing sheet.

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

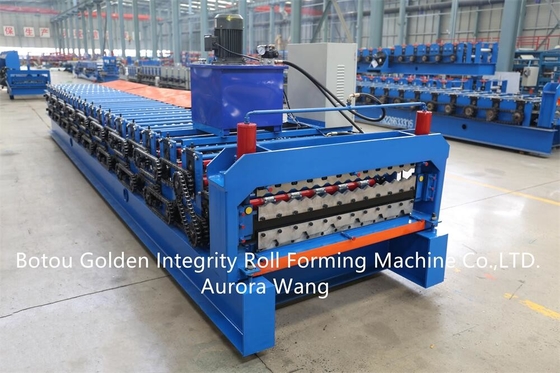

Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine 1

7. Product photo

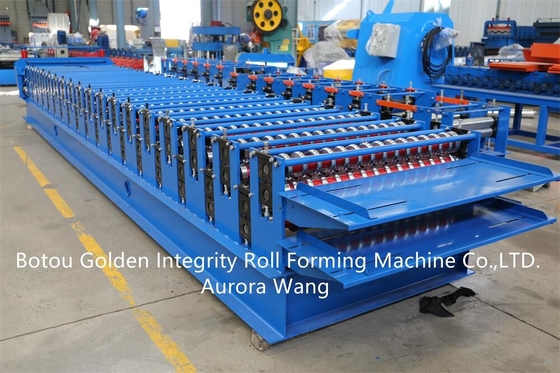

Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine 2

Full automatic double layer metal roofing sheet corrugated and trapezoid sheets roll forming machine 3
