| Place of Origin: | HEB, China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | double layer pu slat machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD55000-USD60500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 50-60 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Product Name: | Double Layer Pu Slat Rolling Up Door Roll Forming Machine | Voltage: | 380V 50Hz 3phases Or As Your Request |
|---|---|---|---|
| Cutting Blade Material: | Cr12 Quenched | Cutting: | Hydraulic Saw Cutting |
| Shaft Material: | High Grade No.45 Forged | Usage: | PU Foam Rolling Up Door |
| Control System: | PLC Control System |
55/77/89 types of Double layer slat pu foam rolling shutter door roll forming machine
1. Description of double layer salt pu rolling up shutter door roll forming machine:
The machine devices consists of:
PU shutter slats is produced from Color steel, Aluminum or Galvanized steel (thickness from 0.3-0.5mm or 0.4-0.6mm, and raw material widths vary according to the required final slats) and PU foam insulated continuously; sometimes punching slots are required. This is according to your request.
2. Technical details of shutter door roll forming machine:
| Coil material | Thickness | 0.22-0.35mm |
| Coil width | custom-made | |
| Yield strength | 100-260MPA | |
| Material | Aluminum | |
| Decoiler/Uncoiler | Coil width | Max 350mm |
| I.D. | 300mm | |
| O.D. | Max 350mm | |
| Forming machine | Forming stations | 37 stations(depends on profile) |
| Roller material | GCR15, HRC58-62 | |
| Diameter of shaft | 40mm | |
| Shaft material | High grade 45#steel | |
| Drive type | Gearvox with univeral joint transmission system | |
| Forming speed | 15-30m/min | |
| Main power | 11kw | |
| Cutting | Cutting type | Pneumatic servo flying saw cutting |
| Cutting tolerance | 10m±0.5mm | |
| Encoder | Omron brand | |
| Electrical control | PLC | Delta |
| Inverter | Delta | |
| Touch Screen | Delta | |
| Operation type | Touch screen & Button | |
| Run out table | Table Type | Simple nonpower type |
| Function | To support the finished panels |
3. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
4. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
5. Double layer slats rolling Shutter door roll forming machine Application
This machine is widely used in the production of the door shutters.

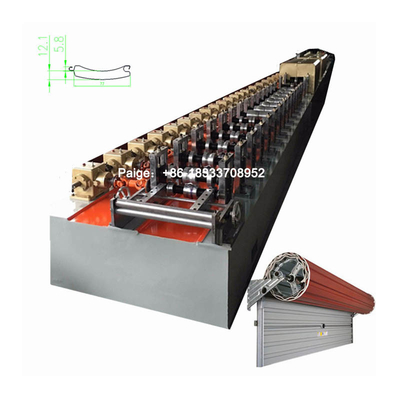

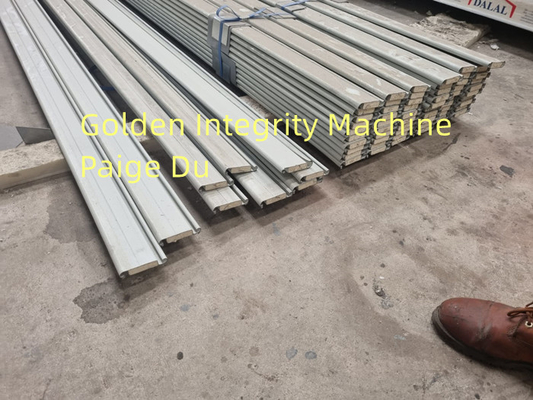

6. Shutter door roll forming machine Product photo

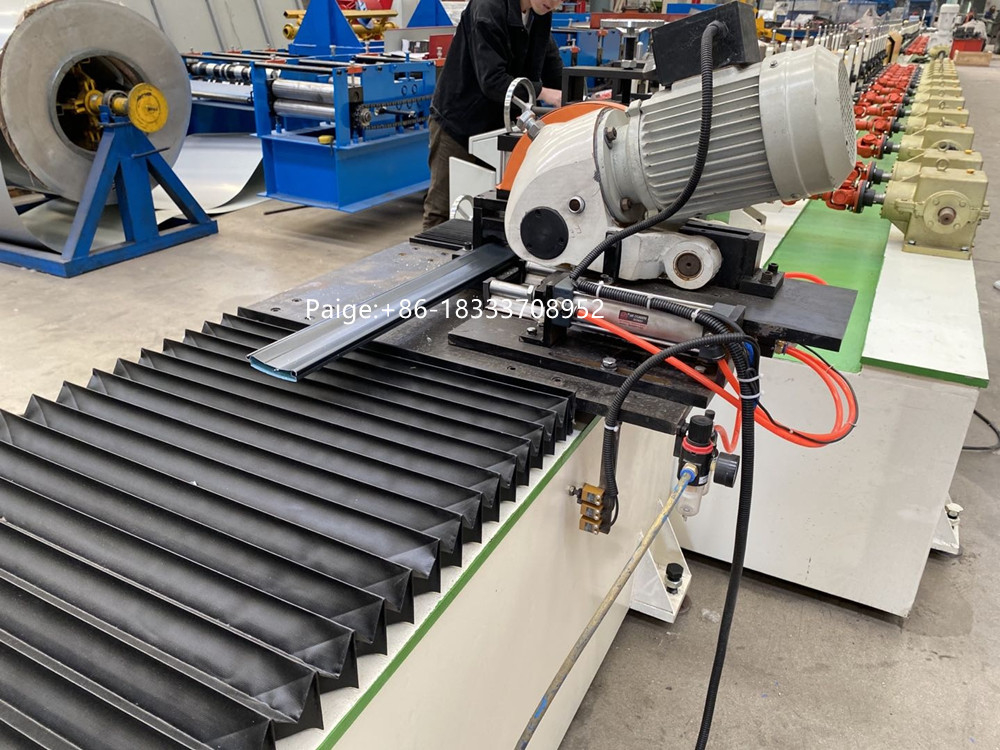

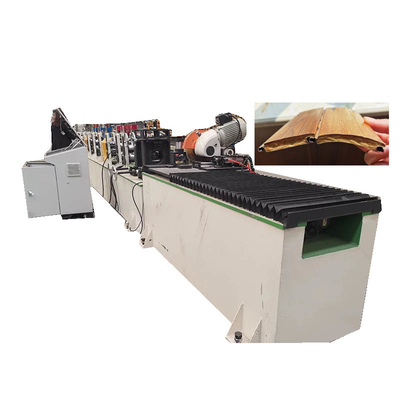

7. Some machine pictures for reference.
8. FAQ
Q: Do you provide training for my workers?
A:Yes.Of course/
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping.
Q: I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A: Yes.If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food, Salary of 1000 USD per day per person (from departure from our factory, until we are back to our factory
Welcome to inquiry.
