You are welcome to contact us for more information.
 |
| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE SGS |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 22500 |
| Packaging Details: | 40GP container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | ISO&CE |
|---|---|---|---|
| Voltage: | 380V/50HZ | Use: | Roof,Floor |
| Weight: | 10T | Tile Type: | Galvanized Steel |
| Roller Material: | High Grade 45# With Heat Treatment And Chrome Coating | Shaft: | High Grade 45# By 89-90mm Diameter |
| Power: | Two Set 11kw Or 2 Sets 15kw Motor | Color: | Blue Or Customized |

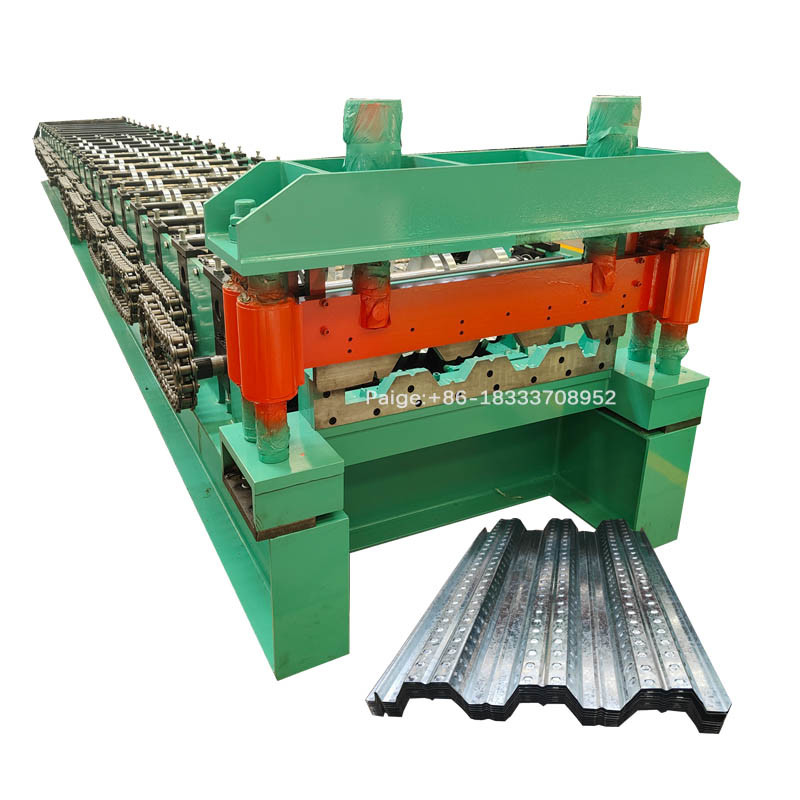

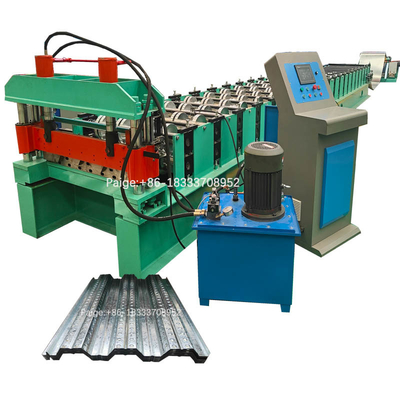

For the deck panel roll forming machine, it is a machine will make deck panel, Our machine can do thickness for 0.8-1.5mm, the shape will be design by your demand. Coil width from 1000-1250mm.
JCX is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc. With ISO CE certificates and over 13 years export expearance.
2. Technical details of door shutter roll forming machine:
| Machine Specifications | |
| Weight | About 10tons |
| Size | About 10mx2.2mx1.3m(length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-25 |
| Diameter of forming rollers shafts8 | 80/90mm |
| Roll Forming Speed | 12-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| Hydraulic pre cutting system | Optional |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll forming-----Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages:
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 2 years maintenance and whole life technical support
