You are welcome to contact us for more information.
 |
| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 22399 |
| Packaging Details: | 40GP container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Certification: | ISO;CE | Weight: | 10T |
|---|---|---|---|
| Tile Type: | Galvanized Steel | Roller Material: | High Grade 45# With Heat Treatment And Chrome Coating |
| Condition: | New | Control System: | PLC With Touch Screen |

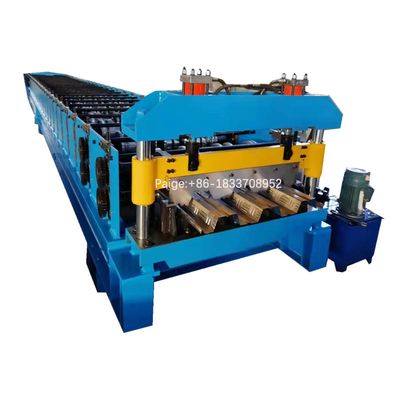

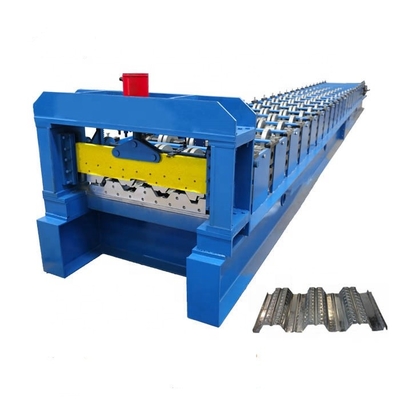

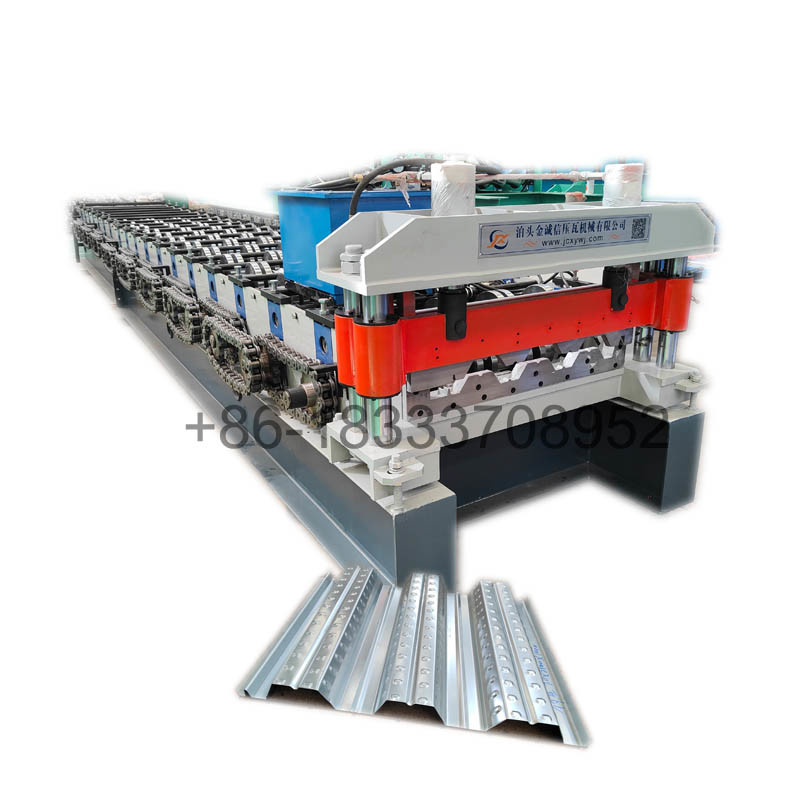

| Product Name: | Cold Steel Roofing Floor Deck | Usage: | Floor Deck |
| Cutting System: | Hydraulic Cutting | Cutting Blade Material: | Cr12 |
| Power(w): | 18.5kw |
JCX is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc. With ISO CE certificates and over 13 years export expearance.
There are 2inches, 3 inches hight deck panel design. Coil width from 1000-1250mm. Just tell us your requirements..
It consists of deoiler--embossing--- main roll forming--auto cutting-- run out table--control system.
2. Technical details of door shutter roll forming machine:
| Machine Specifications | |
| Weight | About 10tons |
| Size | About 10mx2.2mx1.3m(length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-25 |
| Diameter of forming rollers shafts8 | 80/90mm |
| Roll Forming Speed | 12-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| Hydraulic pre cutting system | Optional |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll forming-----Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages:
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 2 years maintenance and whole life technical support
Contact Person: Eileen Sun
Tel: +86 17331704660
