STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE

Product Details:

Place of Origin:	Hebei
Brand Name:	JCX
Certification:	CE ISO
Model Number:	Deck panel roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	22399
Packaging Details:	40GP container
Delivery Time:	45days
Payment Terms:	L/C, T/T
Supply Ability:	1000 SET/ year

Contact Now

Detailed Product Description

Certification:	ISO CE	Weight:	10kgs
Tile Type:	Galvanized Steel	Roller Material:	High Grade 45# With Heat Treatment And Chrome Coating
Condition:	New	Control System:	Delta PLC AND INVETER
Product Name:	Cold Steel Roofing Floor Deck	Usage:	Floor Deck
Cutting System:	Hydraulic Cutting	Cutting Blade Material:	Cr12
Power(w):	18.5kw

STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE

1. Description of STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE

Press-formed steel plates supporting floor concrete we called it Steel Floor deck panel.

Our Floor deck steel forming machine adopt full auto control cabinet by PLC, inverter which have higher realiable system and make prodcution more fast, saves labor and cost too.

There are 2inches, 3 inches hight deck panel design. Coil width from 1000-1250mm. Just tell us your requirements..

It consists of deoiler--embossing--- main roll forming--auto cutting-- run out table--control system.

JCX is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc. With ISO CE certificates and over 13 years export expearance.

2. Technical details of STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE

Machine Specifications
Weight	About 9tons
Size	About 10mx1.6mx1.3m(length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	22-25
Diameter of forming rollers shafts8	80/90mm
Roll Forming Speed	12-15m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 2*11kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

3. Main components of STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set
Hydraulic pre cutting system	Optional

4. Production Flows:

Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll forming-----Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages:

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 2 years maintenance and whole life technical support

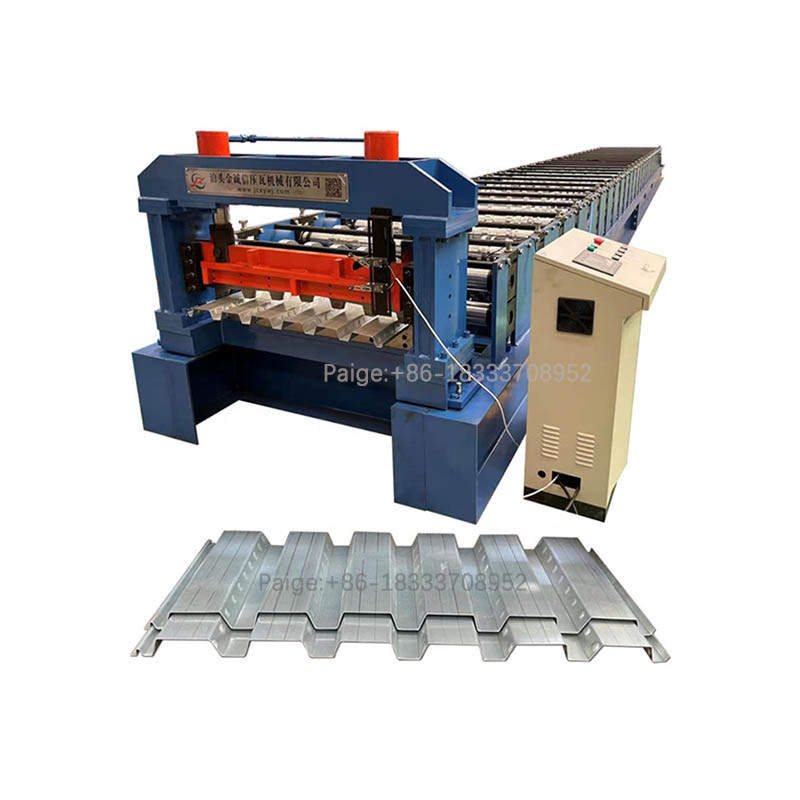

STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE 0

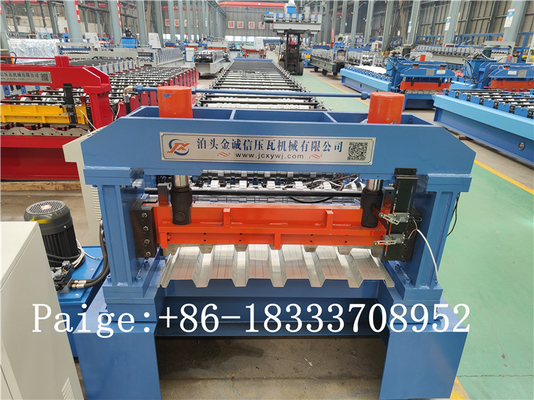

STEEL DECK PANEL FLOOR DECKING ROLL FORMING MACHINE FLOOR DECKING MACHINE 1
