You are welcome to contact us for more information.
 |
| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 22399 |
| Packaging Details: | 40GP container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Certification: | ISO;CE | Weight: | 10T |
|---|---|---|---|
| Tile Type: | Galvanized Steel | Roller Material: | High Grade 45# With Heat Treatment And Chrome Coating |
| Condition: | New | Control System: | PLC With Touch Screen |

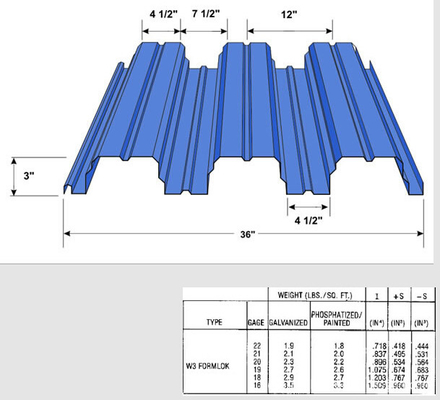

| Product Name: | Cold Steel Roofing Floor Deck | Usage: | Floor Deck |
| Cutting System: | Hydraulic Cutting | Cutting Blade Material: | Cr12 |
| Power(w): | 18.5kw |

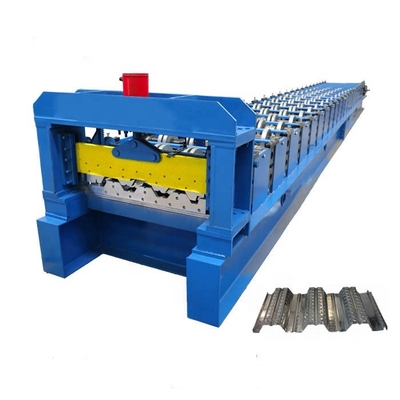

Our AUTOMATIC STEEL GALVANIZED STEEL DECK PANEL ROLL FORMING MACHINE ADOPT :
High quality 45#steel by heat treatment
Shaft: full solid 80mm or 90mm as per deck paneldesign and thickness
Main motor by: 18.5kw or 2 sets 15kw for enough power
Embossing shafts to roll different pattens
Control by PLC, INVETER
2. Technical details of STEEL GALVANIZED COIL FLOOR DECKING MACHINE FLOOR DECK FORMING MACHINE :
| Machine Specifications | |
| Weight | About 10tons |
| Size | About 10mx2.2mx1.3m(length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-25 |
| Diameter of forming rollers shafts8 | 80/90mm |
| Roll Forming Speed | 12-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| Hydraulic pre cutting system | Optional |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll forming-----Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages:
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 2 years maintenance and whole life technical support
Contact Person: Audrey Xing
Tel: +86 15530763231
