| Place of Origin: | Hebei China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 19999-23999 |
| Packaging Details: | 40GP container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PER YEAR |
| Weight: | 9T | Tile Type: | Galvanized Steel. Steel |
|---|---|---|---|
| Roller Material: | High Grade 45# With Heat Treatment And Chrome Coating | Condition: | New |
| Control System: | PLC Delta Brand | Product Name: | Cold Steel Roofing Floor Deck |
| Usage: | Floor Deck Panel | Cutting System: | Hydraulic Cutting |
| Cutting Blade Material: | Cr12 | Power(w): | 15-18.5kw |
Our STEEL GALVANIZED FLOOR DECK MACHINE METAL FLOOR DECKING SHEET MAKING MACHINE :

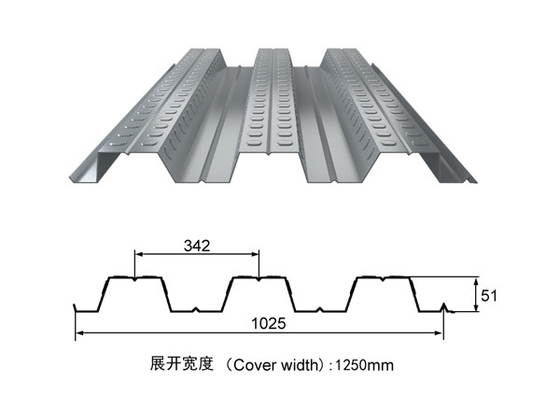

1000 floor deck roll forming machine popular sell in many countries, Coil width before rolling is 1220mm /1000mm. After rolling product width is 1000mm or 688mm, Material common is GI material, material thickness common between 0.8-1 mm.
2. Technical details of FLOOR DECK ROLL FORMING MACHINE METAL DECK ROLL FORMING MACHINE
| Machine Specifications | |
| Weight | About 9tons |
| Size | About 10mx2.2mx1.3m(length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-25 |
| Diameter of forming rollers shafts8 | 80/90mm |
| Roll Forming Speed | 10-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11kw or 18.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of STEEL GALVANIZED FLOOR DECK MACHINE METAL FLOOR DECKING SHEET MAKING MACHINE
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| Hydraulic pre cutting system | Optional |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll forming-----Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

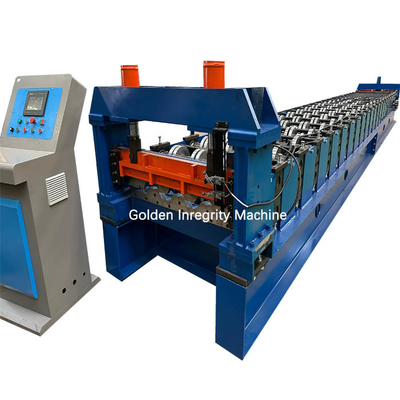

5. Machine picture:
6. Advantages:
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 2 years maintenance and whole life technical support
Contact Person: Audrey Xing
Tel: +86 15530763231
