Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | floor deck roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD16000-USD19000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-45 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 SETS PER MONTH |
Product Name: | Floor Decking Forming Machine | After-sales Service Provided: | Onlin And Oversea |
---|---|---|---|
Cutting Type: | Hydraulic System | Cutting Blade Material: | Cr12 Quenched |
Shaft Material: | High Grade No.45 Forged | Warranty: | 1 Year |
Control Type: | PLC System | Machine Weight: | 8 Tons |
Highlight: | 1.5mm Floor Decking Roll Forming Machine,Floor Decking Roll Forming Machine Galvanized |
High speed floor decking roll forming machine galvanized 0.8mm-1.5mm
1. Description of floor decking roll forming machine:
The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.
The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,
cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,
logistics centers, Olympic venues and gymnasium Steel structures.
Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of floor decking roll forming machinery:
floor decking roll forming Machine Specifications | |
Weight | About 8tons |
Size | About 8mx1.2mx1.3m(length x width x height) |
Color | Machine Main color: blue or can as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.8-1.5mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 19stations |
Diameter of forming rollers shafts | 75mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main components of floor decking roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
We are very rigorous in every tiny detail,including raw material and making machines.
6. Application
This machine is widely used in the production of the roof and floor systems.

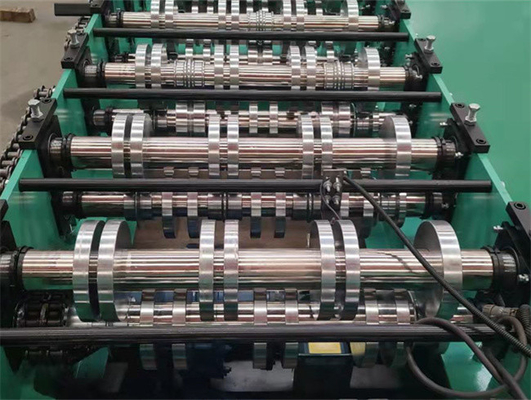

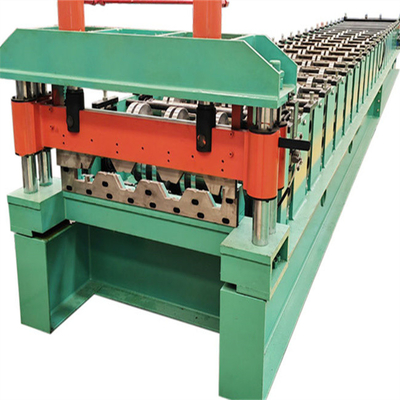

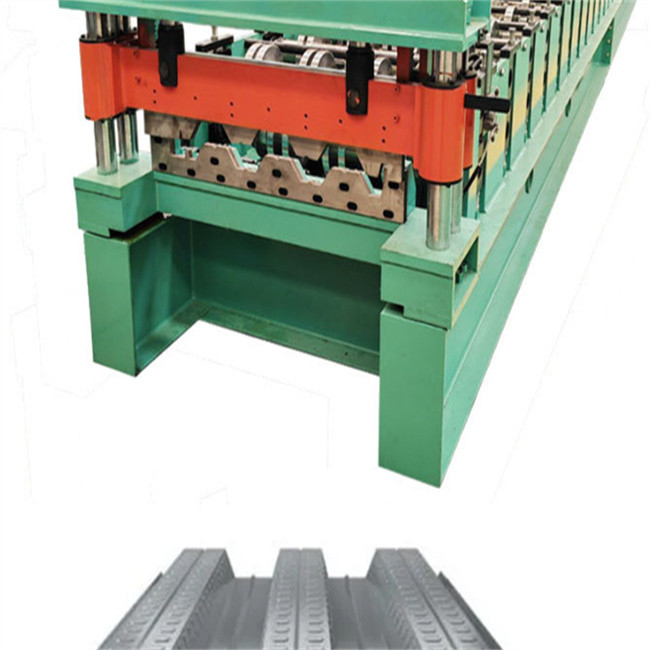

7. Product photo
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
