5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine

5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine

  • 5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine
  • 5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine
  • 5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine
5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: floor deck roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD13000-USD18000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Floor Decking Forming Machine After-sales Service Provided: Onlin And Oversea
Cutting Type: Hydraulic System Cutting Blade Material: Cr12 Quenched
Shaft Material: High Grade No.45 Forged Warranty: 1 Year
Control Type: PLC System Machine Weight: 8 Tons
Highlight:

5kw Floor Decking Roll Forming Machine

,

10m/Min Roofing Metal Forming Machine

,

15m/Min Roofing Metal Forming Machine

Galvanized Steel floor decking roll forming machine roofing metal fully automatic





1. Description of floor decking roll forming machine:



  •  The floor decking roll forming amchine produced the steel decks are flat, high precision within 1.5mm,if you are interest thick raw material ,please contact me.
  • Use Delta PLC operating system with stable performance, operation is easy, as long as you set the length and quantity,the PLC can meet your require
  • The machine speed is 10-15m/min.



Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.







2. Technical details of floor decking roll forming machinery:



floor decking roll forming Machine Specifications
Weight About 8tons
Size About 8mx1.2mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils,color steel
Thickness 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 19stations
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of floor decking roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

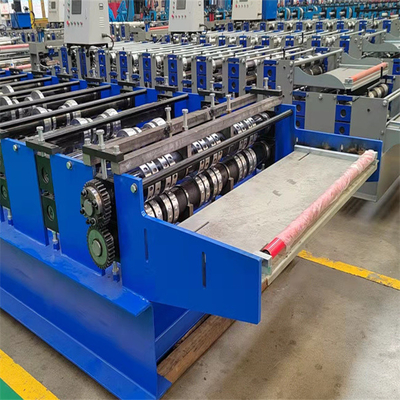

5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine 0





5. Advantages



  • Our factory have 5 engineers with more than 20 years experience
  • We have 30 professional technician
  • we have 20 sets advanced CNC production lines to produce the machine rollers
  • We have professional designers and professional training,and have  professional equipment, in this case we can provide professional machines.
  • We are very rigorous in every tiny detail,including raw material and making machines.

6. Application



This machine is widely used in the production of the roof and floor systems.



7. Product photo

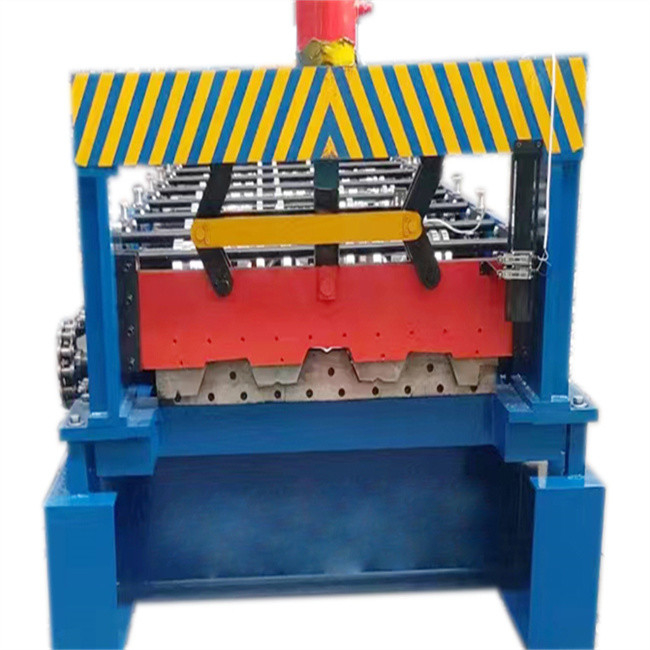

5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine 1

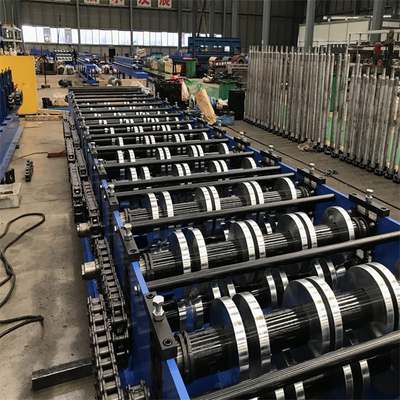

5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine 2





FAQ



Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.







Q4. What will you do if the machine is broken?

A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.







Welcome to inquiry.
