Metal Deck Roll Former PLC and Converter with protective cover

Metal Deck Roll Former PLC and Converter with protective cover

  • Metal Deck Roll Former PLC and Converter with protective cover
  • Metal Deck Roll Former PLC and Converter with protective cover
Metal Deck Roll Former PLC and Converter with protective cover
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: floor deck roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD13000-USD18000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Floor Decking Forming Machine After-sales Service Provided: Onlin And Oversea
Cutting Type: Hydraulic System Cutting Blade Material: Cr12 Quenched
Shaft Material: High Grade No.45 Forged Warranty: 1 Year
Control Type: PLC System Machine Weight: 8 Tons
Highlight:

Deck Roll Former PLC Converter

,

Protective Cover Deck Roll Former

Galvanized Steel Metal Floor decking roll forming machine with protective cover





1. Description of floor decking roll forming machine:



Floor decking Roll Forming Machine is a steel deck profile cold roll-machine. The floor decking Roll Forming Machine use PLC control,it’s very easy to operate. The machine realizes continuous production automatically. This cold roll forming machine is energy-saving and high-effective to producefloor deck .Floor decking Roll Forming Machine is used to manufacture deck floor for steel-structured buildings in constructional engineering.



Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.







2. Technical details of floor decking roll forming machinery:



floor decking roll forming Machine Specifications
Weight About 8tons
Size About 8mx1.2mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils,color steel
Thickness 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 19stations
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of floor decking roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Metal Deck Roll Former PLC and Converter with protective cover 0





5. Advantages



  • Our factory have 5 engineers with more than 20 years experience
  • We have 30 professional technician
  • we have 20 sets advanced CNC production lines to produce the machine rollers
  • We have professional designers and professional training,and have  professional equipment, in this case we can provide professional machines.
  • We are very rigorous in every tiny detail,including raw material and making machines.

6. Application



This machine is widely used in the production of the roof and floor systems.



7. Product photo

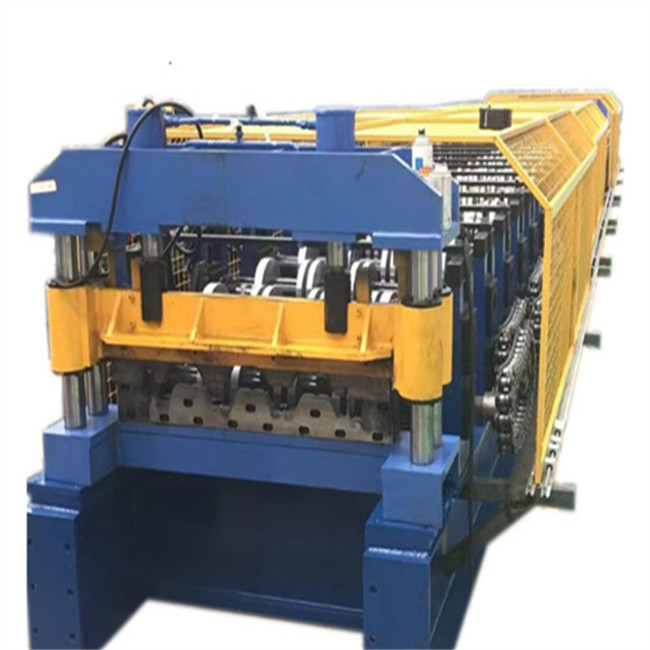

Metal Deck Roll Former PLC and Converter with protective cover 1

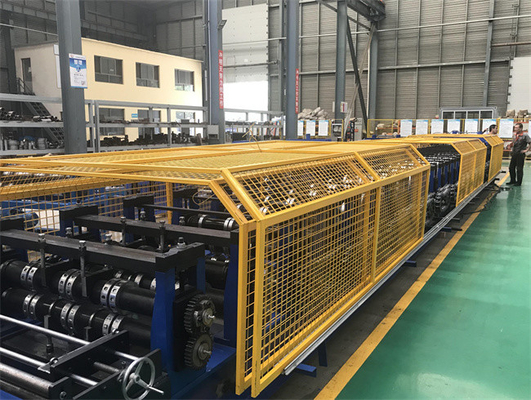

Metal Deck Roll Former PLC and Converter with protective cover 2



FAQ



Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.





Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.







Welcome to inquiry.
