PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine

PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine

  • PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine
  • PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine
  • PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine
PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: floor deck roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD13000-USD18000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Floor Decking Forming Machine After-sales Service Provided: Onlin And Oversea
Cutting Type: Hydraulic System Cutting Blade Material: Cr12 Quenched
Shaft Material: High Grade No.45 Forged Warranty: 1 Year
Control Type: PLC System Machine Weight: 8 Tons
Highlight:

PLC Steel Deck Roll Forming Machine

,

Steel Deck Roll Forming Machine 20m/Min

,

20m/Min High Speed Floor Decking Machine

Galvanized high speed floor deck forming machine metal roof floor decking machinery





1. Description of floor decking roll forming machine:



  • The machine produced the sheet are used roof and floor systems
  • The machine rollers are made by CNC machine ,we can ensure the machine rollers quality
  • The machine frame made by ourself,we can guarantee machine frame does not open welding



Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.







2. Technical details of floor decking roll forming machinery:



floor decking roll forming Machine Specifications
Weight About 8tons
Size About 8mx1.2mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils,color steel
Thickness 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 19stations
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of floor decking roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

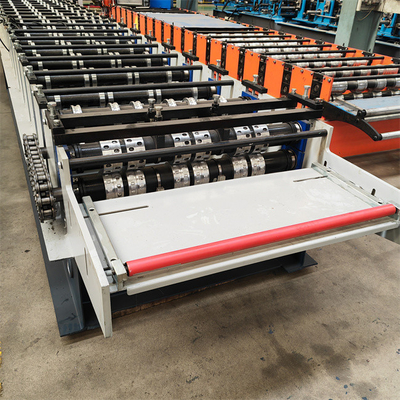

PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine 0





5. Advantages



  • Who is responsible for inspecting the machine?

    We have four QC supervisors.Raw materials are the first step in our manufacturing of machines. Our team will check the raw materials every time before starting production to ensure quality.

  • We strictly follow the factory's quality inspection standards and have rich experience

  • We have special roller hardness testing equipment. We can ensure that the roller hardness is suitable for your product material.

    If the roller is too hard, it will damage the raw material.

    if it is not hard enough, it will be difficult to form products

6. Application



This machine is widely used in the production of the roof and floor systems.



7. Product photo

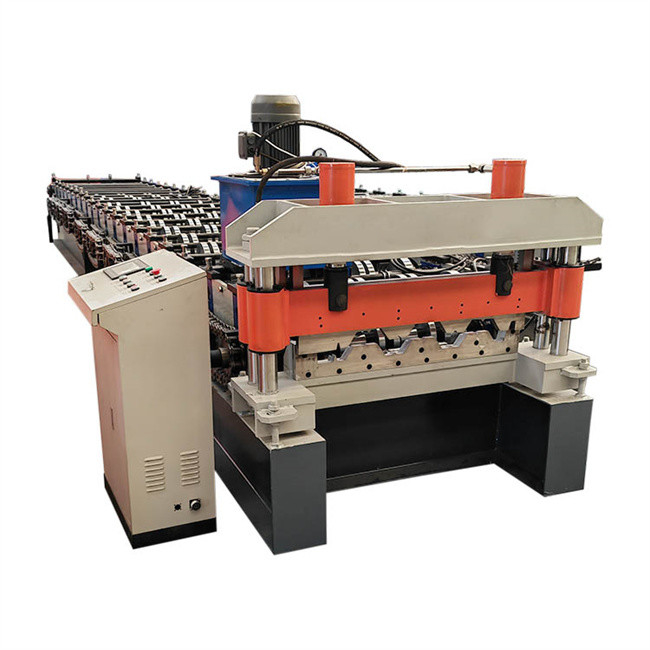

PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine 1

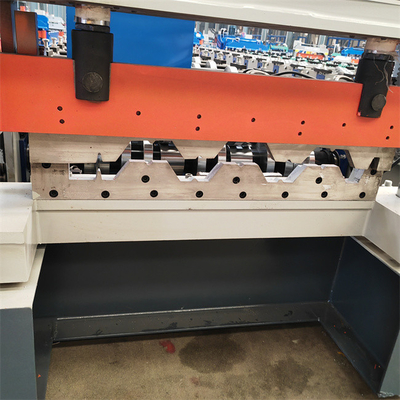

PLC Steel Deck Roll Forming Machine 20m/min High Speed Floor Decking Machine 2





FAQ



Q. You don't show the product I need, can you manufacture it?

A:Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.



Q. How long can the machine be built?

A:Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.



Q. Why are your prices higher than others?

A:Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
