GI Steel Deck Roll Forming Machine For Steel Construction Material

GI Steel Deck Roll Forming Machine For Steel Construction Material

  • GI Steel Deck Roll Forming Machine For Steel Construction Material
  • GI Steel Deck Roll Forming Machine For Steel Construction Material
GI Steel Deck Roll Forming Machine For Steel Construction Material
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: floor deck roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD28000-USD35000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Floor Decking Forming Machine After-sales Service Provided: Onlin And Oversea
Cutting Type: Hydraulic System Cutting Blade Material: Cr12 Quenched
Shaft Material: High Grade No.45 Forged Warranty: 12 Months
Control Type: PLC System Machine Weight: 12.5 Tons
Machine Frame: 400H Or 450H Steel Sidewall Structure: 20mm
High Light:

GI Steel Deck Roll Forming Machine

,

Construction Steel Deck Roll Forming Machine

GI Automatically Metal Floor Deck Roll Forming Machine For Steel Construction Material Floor Deck



1. Description of floor decking roll forming machine:



Metal deck can be used for a variety of applications. Two of the most common types of metal deck are roof deck and floor deck. B Deck is the most common structural roof deck. It is also our top-selling metal deck. Typically B Decking is the ideal solution for short to medium span applications in roof, canopies, and awning construction.



Metal roof deck is widely used in commercial and industrial construction projects. It creates a strong base that roofing systems can be built upon. Roof deck works for a variety of structure types, including pitched, flat and arched roofs. It is strong yet lightweight, easy to install, and very economical.



Floor deck is also called composite deck because it is used in conjunction with concrete. When floor deck is laid down, concrete is poured over it to form a strong base structure for construction.



Because the thickness of the working material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a metal corrugated roof roll forming machine, please send me your profile drawing, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.



2. Technical details of floor decking roll forming machinery:



floor decking roll forming Machine Specifications
Weight About 12.5tons
Size About 12.5mx1.5mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils,color steel
Thickness 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 19stations
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 15.5kw+15.5kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement







3. Main components of floor decking roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

GI Steel Deck Roll Forming Machine For Steel Construction Material 0





5. Advantages



  • Our factory have 5 engineers with more than 20 years experience
  • We have 30 professional technician
  • we have 20 sets advanced CNC production lines to produce the machine rollers
  • We have professional designers and professional training,and have  professional equipment, in this case we can provide professional machines.
  • We are very rigorous in every tiny detail,including raw material and making machines.

6. Application



This machine is widely used in the production of the roof and floor systems. Metal floor decking roll forming machine popular sell in many countries, such as United States, Mexico, Chile, Peru, Australia, Rwanda, Nigeria, Kenya, Dubai, Qatar, Thailand, India, Indonesia, Malaysia, Colombia Coil width before rolling is 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.8-1.5 mm.

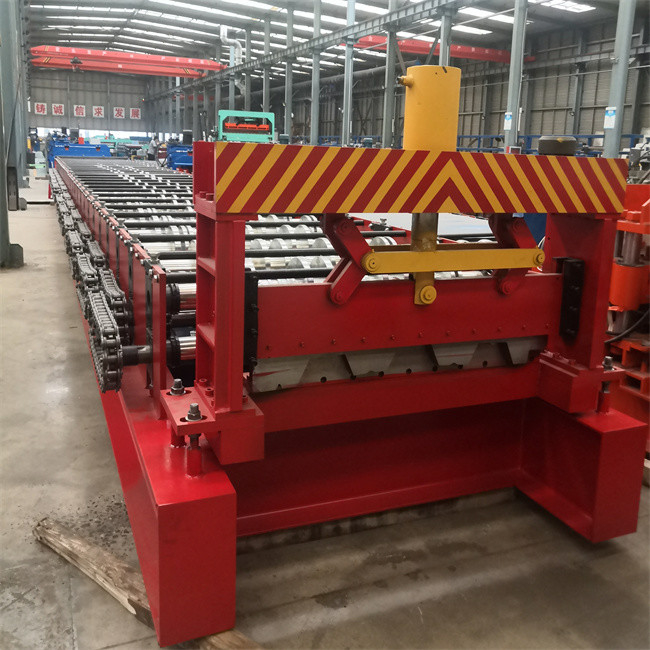

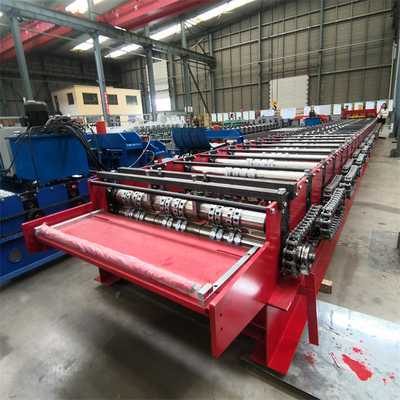

7. Product photo



GI Steel Deck Roll Forming Machine For Steel Construction Material 1GI Steel Deck Roll Forming Machine For Steel Construction Material 2



FAQ



Q: Are you a trading company or a factory?

A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.



Q: How long does it take to manufacture the machine?

A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.



Q:How to visit our company:

A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

      Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.



Q. How to get a quotation?

A: 1. Give me the profile drawing and the thickness of your material it is very important.

2. If you have requirements for production speed, power, voltage and brand, please explain in advance.

3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.



Welcome to inquiry.
