Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | Shipping Container Roof Panel Roll Forming Machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD28000-USD35000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-45 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 SETS PER MONTH |
Product Name: | Shipping Container Roof Panel Roll Forming Machine | After-sales Service Provided: | Onlin And Oversea |
---|---|---|---|
Cutting Type: | Hydraulic System | Cutting Blade Material: | Cr12 Quenched |
Shaft Material: | High Grade No.45 Forged | Warranty: | 12 Months |
Control Type: | PLC System | Machine Weight: | 13.5 Tons |
Machine Frame: | 400H Or 450H Steel | Sidewall Structure: | 20mm |
Highlight: | JCX Floor Decking Roll Forming Machine,R Panel Roll Former 0.8mm,Floor Decking Roll Forming Machine2.5mm |
GI Metal Shipping Container Roof Panel Roll Forming Machine For Steel Truck Body Panels
1. Description of Shipping Container Roof Panel Roll Forming Machine:
is used to produce container roof panel. The machine is fully automatically controlled by PLC control system with the advantage of easy operation and high efficiency. The machine is composed of decoiler, leveler, main forming machine, cutting device, outer table, hydraulic system, and control box.
Because the thickness of the working material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a metal corrugated roof roll forming machine, please send me your profile drawing, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Shipping Container Roof Panel Roll Forming Machine:
floor decking roll forming Machine Specifications | |
Weight | About 13.5tons |
Size | About 12mx1.2mx1.3m(length x width x height) |
Color | Machine Main color: blue or can as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils,color steel |
Thickness | 0.8-2.5mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 24stations |
Diameter of forming rollers shafts | 90mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 11.5kw |
Hydraulic unit motor power: 11.5kw | |
Electric voltage | According to customer’s requirement |
3. Main components of floor decking roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
We are very rigorous in every tiny detail,including raw material and making machines.
6. Application
This machine is widely used in the production of the shipping container roof panel . shipping container roof panel roll forming machine popular sell in many countries, such as United States, Mexico, Chile, Peru, Australia, Rwanda, Nigeria, Kenya, Dubai, Qatar, Thailand, India, Indonesia, Malaysia, Colombia Coil width before rolling is 1200mm /1220mm / 1250mm. Material common is PPGI material, material thickness common between 0.8-2.5 mm.

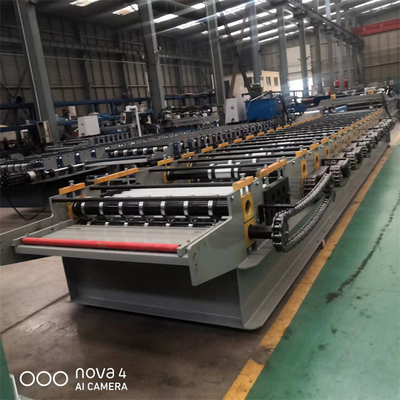

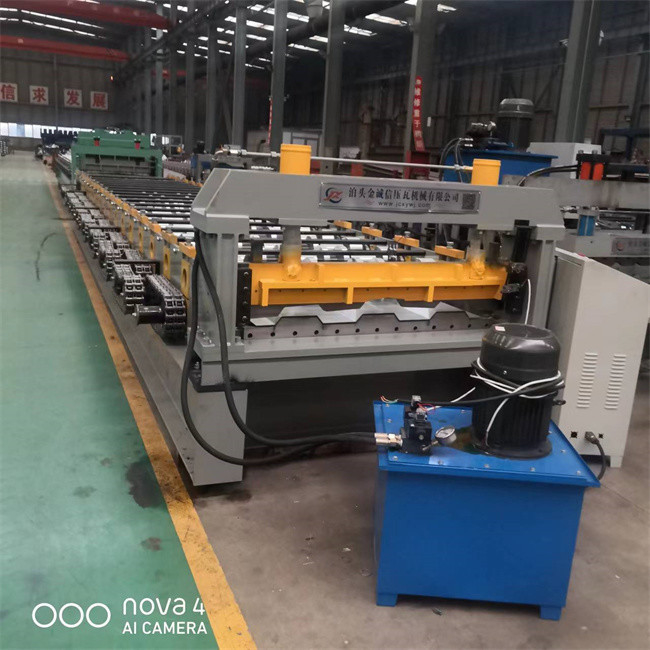

7. Product photo
FAQ
Q. How to get a quotation?
A: 1. Give me the profile drawing and the thickness of your material it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q. You don't show the product I need, can you manufacture it?
A: Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q. How long can the machine be built?
A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Welcome to inquiry.
