JCX Floor Decking Roll Forming Machine PLC Detla Control System

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Floor Decking Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Floor Decking Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	JCX Floor Decking Roll Forming Machine , Floor Decking Roll Forming Machine PLC Detla

JCX Good Quality Steel Metal Floor Decking Roll Forming Machine With Best Price

1. Floor decking roll forming machine

In short,Roof decking floor profiles are typically used as the structural component. The steel decking floor is a cold-formed steel sheet. Metal Decking use in roof and floor systems for supporting the concrete or insulating membrane of a roof. Its design and construction magnify properties of the steel.

2. Technical details of floor decking roll forming machine

No	ITEM		PARAMETER	Remark
1	Suitable material	Type	Cold rolled steel coil Galvanized steel coil
		Thickness(mm)x coil width	0.6mm--1.2mmx1220mm
		Yield stress( Mpa)	G350Mpa
2	Forming speed(m/min)		18-20	Without cutting time
3	Forming station		24
4	Main machine power(kw)		22 KW	Motor made in china
5	Hydraulic station power(kw)		5.5kw	made in china
6	Power for 5T hydraulic decoiler(5.5kw)+hydraulic station 3kw		8.5KW	Motor made in china
7	Total power(kw)		About 36 kw
8	Power supply requirement		440V,60Hz,3Ph
9	Machine dimension(LxWxH)		About 13mmx1.7mmx1.4mm
10	Machine color		Green with Yellow color combination

3. Main components of floor decking roll forming machine

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Entry Beach	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	punching	set	1
6	Output Table	set	1
7	Control System(PLC)	set	1
8	hydraulic station	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

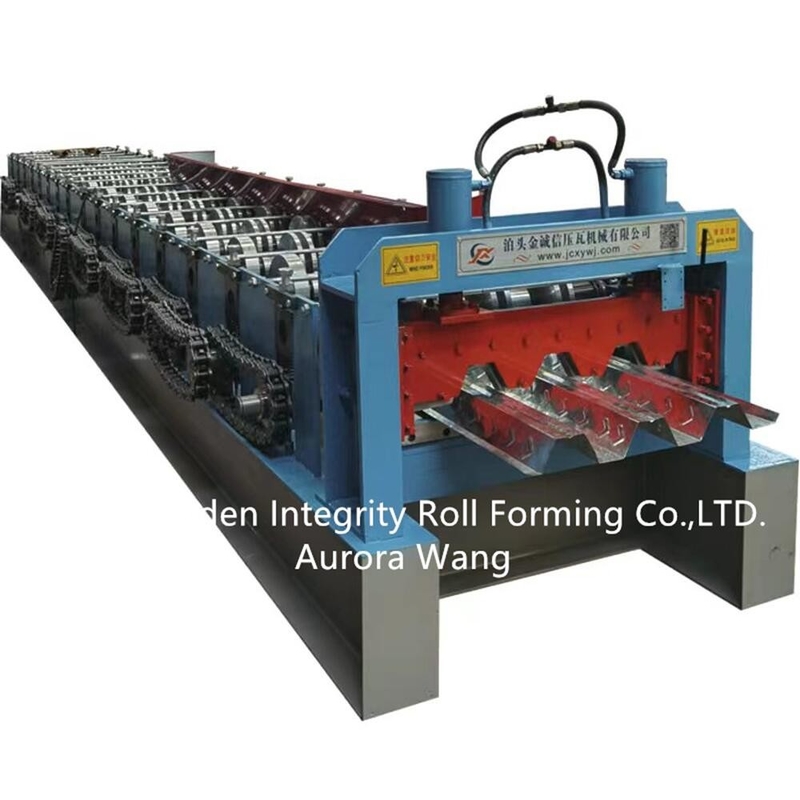

JCX Floor Decking Roll Forming Machine PLC Detla Control System 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

JCX Floor Decking Roll Forming Machine PLC Detla Control System 1

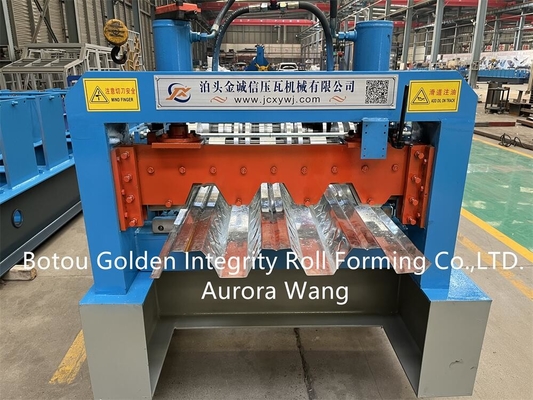

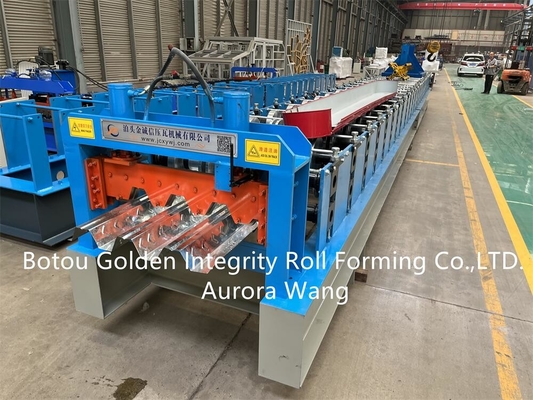

7. Product photo

JCX Floor Decking Roll Forming Machine PLC Detla Control System 2

JCX Floor Decking Roll Forming Machine PLC Detla Control System 3

JCX Floor Decking Roll Forming Machine PLC Detla Control System 4

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
