| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Slitting Line Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD95000-USD100000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Condition: | New | Tile Type: | Slitting Line Machine |
|---|---|---|---|
| Automatic Level: | Fully Automatic | Product Name: | Shearing Metal Sheet Machine |
| Raw Material: | Galvanized Sheet,color Steel | Power(KW): | 180KW |
| Weight: | 25tons | Cutting Precision: | 0.5mm |
| Thickness For Material:: | 0.3MM To 6MM | Dimension(L*W*H): | 40000x7500x2000mm |
| Highlight: | Coil Slitting Machine Line 180kw,Cutting To Length Coil Slitting Machine Line |
||
High Precision Automatic Metal Steel Coil Slitting And Cutting To Length Machine Production Line
1. Description of Slitting Line Machine:
The whole line is consists of coil car, uncoiler, powerized straightener, powerized slitting machine, scarp winder, tension unit, recoiler and assisting support. exit coil car, hydraulic system, electrical system and so on. it can do uncoiling, straightening, slitting and recoiling works. It is controlled by PLC with computer display.
Our slitting lines can be equipped to slit hot rolled steel, cold rolled steel, pre-painted steel, stainless steel, aluminum, With a devotion to meeting customer needs, we holds the highest standards when it comes to its products.
The sitting line speed, the design of the machines and the degree of automation depend on the estimated productivity of the line, the surface requirement, the strip thickness range, the strip width and the coil weight. Take advantage of our many years of experience in cutting various materials such as copper, aluminum, steel stainless steel, color steel, zinc plated,
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 25 tons |
| Size | About 40000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-6mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 180kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

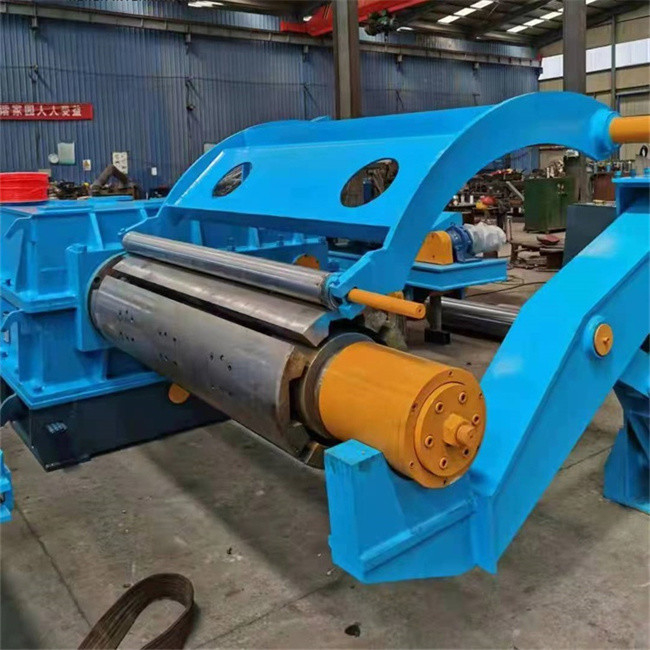

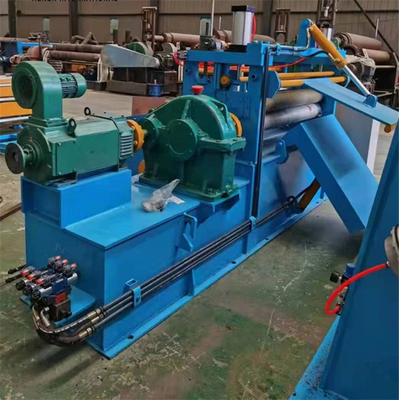

7. Slitting Line Machine Product photo
FAQ
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q6. How to get a quotation?
A: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
