| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Cutting line machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD95000-USD100000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Condition: | New | Tile Type: | Slitting Line Machinery |
|---|---|---|---|
| Automatic Level: | Automatic | Product Name: | Shearing Color Steel Coil Making Machine |
| Raw Material: | Galvanized Sheet,color Steel, Aluminum | Power(KW): | 80KW |
| Weight: | 10tons | Cutting Precision: | 0.5mm |
| Thickness For Material:: | 0.3MM To 3MM | Dimension(L*W*H): | 35000x7500x2000mm |
| High Light: | Metal Plate Slitting Line Machine,80KW Metal Slitting Machine,Cnc Metal Slitting Machine |
||
Metal plate Cut to length stainless steel slitter cnc Strip slitting line making machine
1. Description of Slitting Line Machine:
A steel coil slitting line is usually referred to as a slitting line or a sheet cutting line. It is a metal-processing line where a wide sheet steel coil is slit into narrower or shorter straps.It also called a steel coil slitting line, such a processing line is sometimes used to process sheet metal coils other than steel. That said, stainless steel is the most common material a slitting line processes. The shorter or narrower steel straps will go into other metal-processing lines to produce the end products.
Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 10 tons |
| Size | About 35000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-3mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 80kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
More than 10 designers with more than 10 years experience
30 professional technician
Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

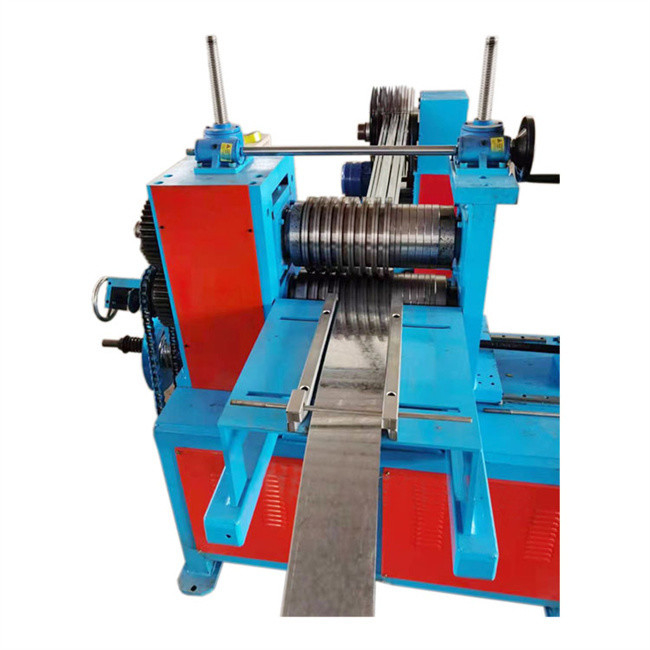

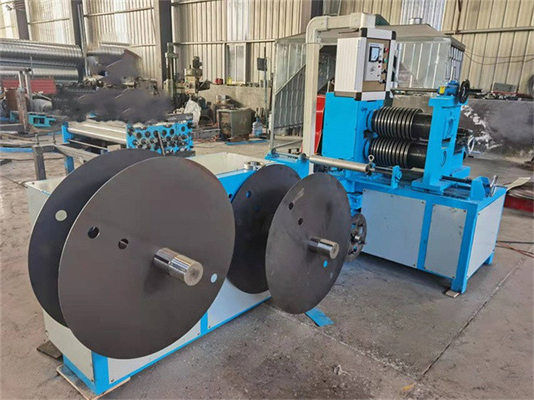

7. Slitting Line Machine Product photo
FAQ
Q: You don't show the product I need, can you manufacture it?
A: Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q:How long can the machine be built?
A:Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
