| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Slitting Line Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-USD15000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Condition: | New | Tile Type: | Slitting Line Machine |
|---|---|---|---|
| Automatic Level: | Fully Automatic | Product Name: | Shearing Metal Sheet Machine |
| Raw Material: | Galvanized Sheet, Color Steel Q235，Q235，Q345，Q345B | Shaft Diameter: | 120mm |
| Transmission: | Gear And Chain | Cut Material: | Cr12 |
| Thickness For Material:: | 0.3mm To 2mm | Dimension(L*W*H): | 3.8M*1.2M*1.2M |
| High Light: | 2mm Steel Coil Slitting Line,0.3mm Steel Coil Slitting Line |
||
0.3-2mm Aluminum stainless steel Coil cut to length and slitting line production line
1. Description of Slitting Line Machine:
Slitting line also known as slitting unit, slitting machine, slitter, scissors, mainly used for galvanized iron, cold rolled strip, stainless steel strip, aluminum strip, strip and other coil slitting. The metal coil is cut into strips of various widths required, and the strip is then taken into small rolls for use in the next process. The whole line is consists of the manual decoiler, slitter device, recoiler, The diameter of the recoiler shaft is optional: 200mm, 300, 500mm, which needs to be used in conjunction with the next process, so please choose according to the needs of the next process to achieve matching.
Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 2 tons |
| Size | About 3.8M*1.2M*1.2M according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-2mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 13kw |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

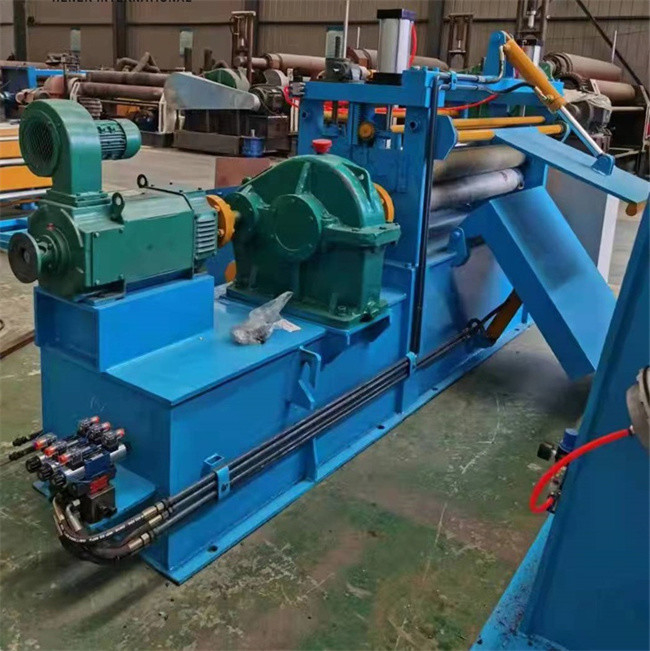

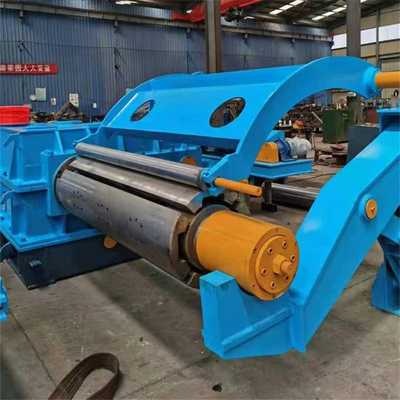

7. Slitting Line Machine Product photo
FAQ
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q:How to visit our company?
A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Now we have some customer come to our factory.
