| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Slitting Line Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD95000-USD100000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS PER MONTH |
| Condition: | New | Tile Type: | Slitting Line Machine |
|---|---|---|---|
| Automatic Level: | Fully Automatic | Product Name: | Shearing Metal Sheet Machine |
| Raw Material: | Galvanized Sheet,color Steel | Power(KW): | 180KW |
| Weight: | 25tons | Cutting Precision: | 0.5mm |
| Thickness For Material:: | 0.3MM To 6MM | Dimension(L*W*H): | 40000x7500x2000mm |
| High Light: | High Precision Slitting Line Machine,Cold Rolled Steel Slitting Line Machine |
||
High precision steel coil slitting line machine China manufacture
1. Description of Slitting Line Machine:
The slitting line is used for slitting wide steel coils ionto certain width strips coils.
Our slitting lines can be equipped to slit hot rolled steel, cold rolled steel, pre-painted steel, stainless steel, aluminum, With a devotion to meeting customer needs, we holds the highest standards when it comes to its products.
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 25 tons |
| Size | About 40000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-6mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 180kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

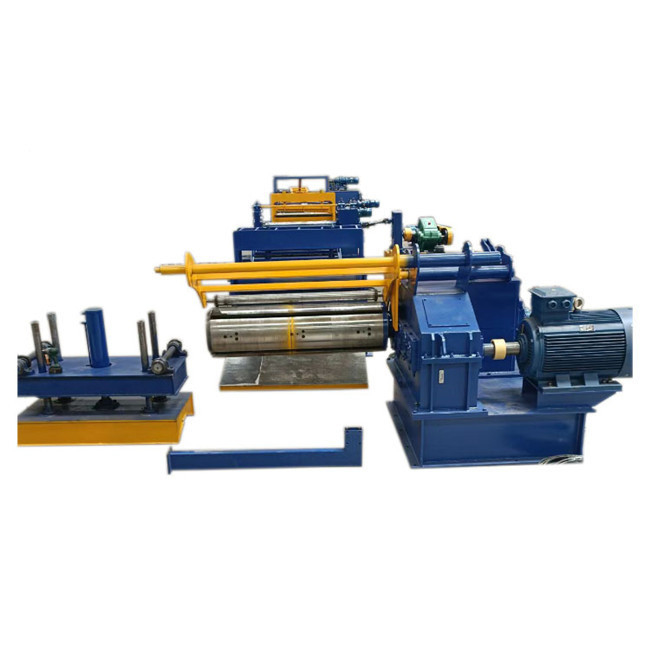

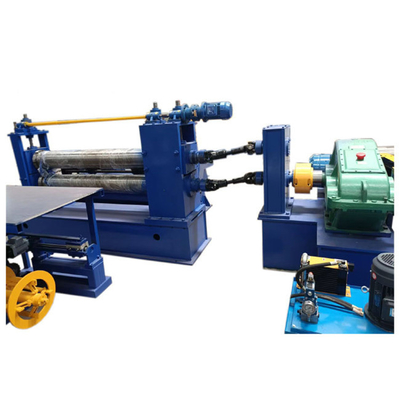

7. Slitting Line Machine Product photo
FAQ
Q: What is your payment terms?
A: We accept 30% T/T as deposit and 70% T/T as balance before shipping.
We accept 100% L/C at sight
We accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you
Q. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Contact Person: Eileen Sun
Tel: +86 17331704660
