| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Slitting Line |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | ISO9001 CE | Product Name: | Slitting Line |
|---|---|---|---|
| After Warranty Service: | Line Support | After-sales Service Provided: | Video Technical Support |
| Warranty: | 12 Months,and Life Long Tracking Service | Advantage: | Automatic Operation |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*20 Feet | ||
| High Light: | Automatic Coil Slitting Line Machine,Coil Slitting Line Machine ISO9001,ISO9001 Cut To Length Line Machine |
||
1. Slitting Line
We can provide slitting line with convenient operation, high cutting quality, high material utilization rate, and stepless speed regulation of cutting speed. Our company’s professional quality inspection team, every link of the machine will be strictly inspected to meet the customer’s requirements for the quality of the machine; our company’s unique destructive test live broadcasts the powerful percussion on the rollers, and also meets In order to meet the requirements of customers wishing to truly see our commitment to high-quality machines.
Our slitting line machine adopts domestic and foreign first-line brands, which can be customized in multiple languages, with simple content and simple operation. Solved the language problem in countries that do not understand English. The procedure is simple and easy to operate, which satisfies the requirement of reducing labor costs and saving costs.
2. Technical details of slitting line
| (1) Raw material parameters | |
| 1. Feed material | Steel plate |
| 2. Feeding thickness | 0.2mm - 0.8mm |
| 3. Feeding width | 600 mm-1600 mm |
| 4. The largest material roll | 1200 mm |
| 5. Inner diameter of material roll | Customer provided |
| 6. Roll weight | 5T |
| (2) Other parameters | |
| 1. Power supply | 380V, 50Hz |
| 2. Total motor power | About KW |
| 3. The whole line covers an area | About 25m × 6m |
| 4. Unit trend | Facing the main console from right to left |
| 5. PLC control | DC or AC speed regulation |
3. Main components of slitting line
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
1). More efficient and accurate execution of production orders;
2). High equipment reliability;
3). Little waste of materials and energy;
4). High productivity;
5). High quality materials, get a longer service life;
6). All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7). Customized coil processing solutions to solve all aspects of technical problems.
6. Certificate

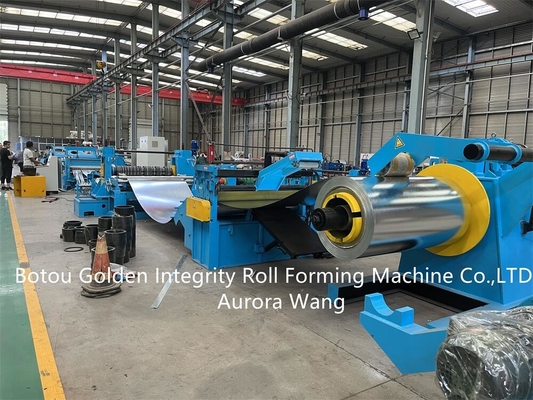

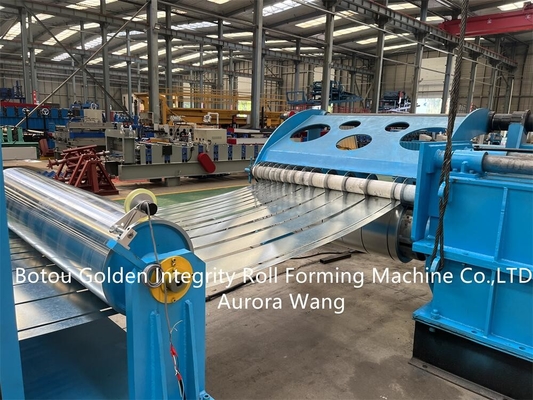

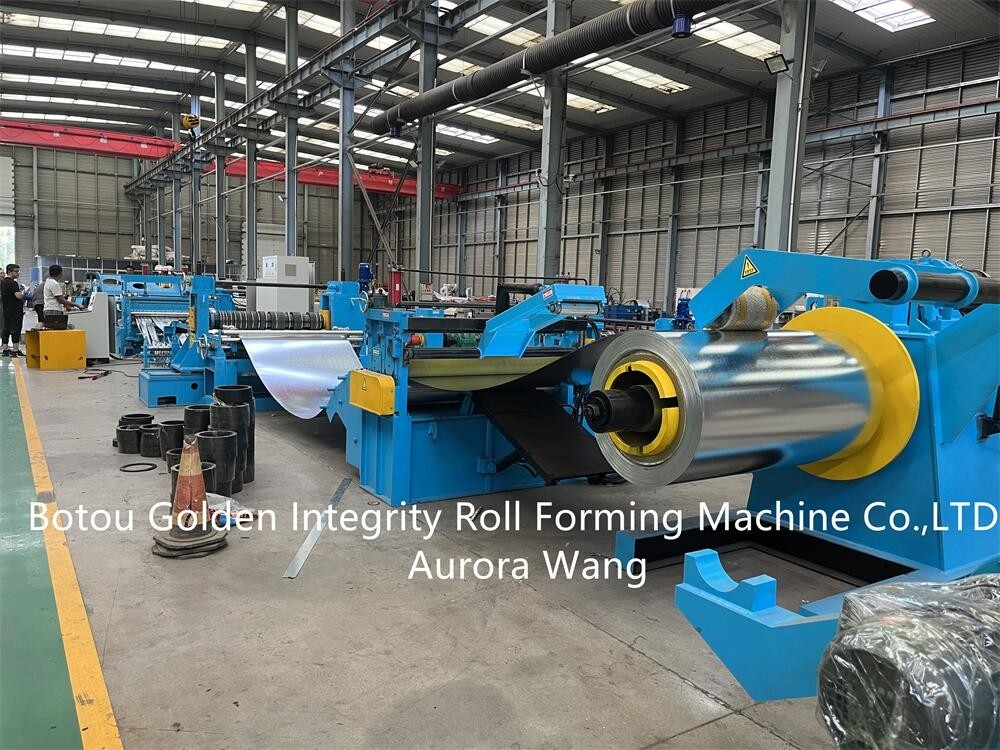

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
